P120 Color Matching Booths Light Box Color Assessment Cabinet With D65 TL84 CWF UV F TL83
P120 Color matching booths / Colour assessment cabinet / Color Light Box with D65,TL84,CWF,UV,F,TL83
Brand: Silk,Made in China
P120 (oversize) can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
P120 Color light box Application:
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light
Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
P120 Color light box Features:
Ø Silk Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized.
About Light Sources:
| Light Source | Color Viewing Booths Application | Color Temperature(K) | Power(W) |
| D65 | International Standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe,Japan and China | 4000 | 18 |
| CWF | Cool White Fluorescent American Standard | 4150 | 18 |
| F/A | "Sun-set Light Yellow" Incandescent Light Source | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brightness or fluorescent pigments. | Wavelength: 365nm | 20 |
| U30 | Warm White Fluorescent, American Standard | 3000 | 18 |

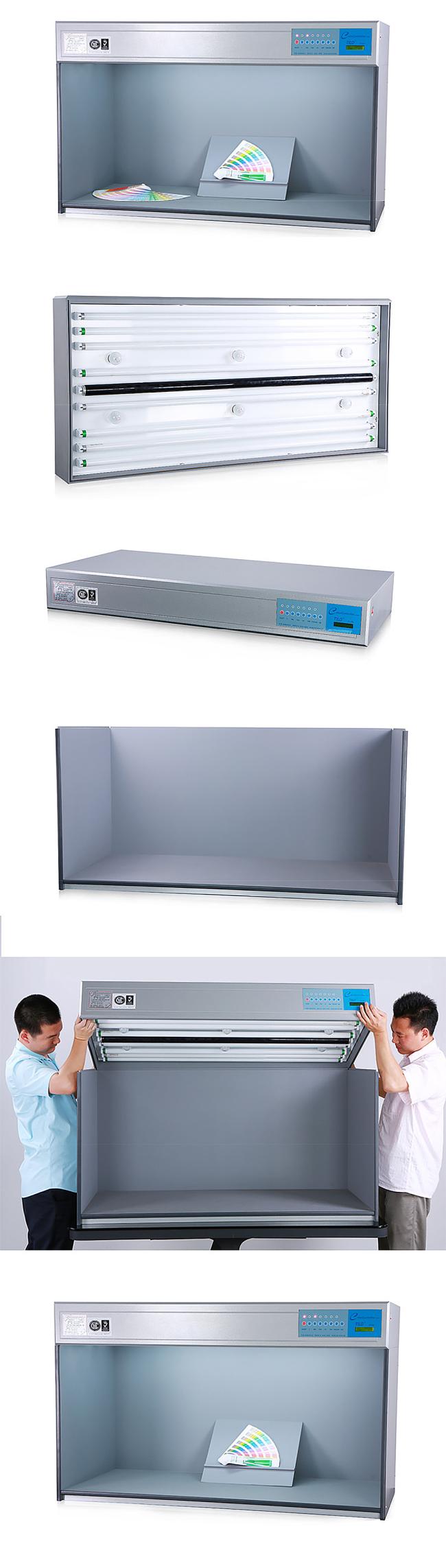

Product Images:
Product Introduction:
P120 can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
| Order Model | Configured Light Sources | Weight | Dimension(mm) |
| P120 Color Light Box | D65,TL84,F,UV,CWF,TL83 | 65kg | 1310x600x800 |
Packing & Delivery:
| Size | 140*71*40cm |
| Gross weight | 60kg |
| Standard accessory | D65 2pcs, TL84, 2 pcs, UV 1 pcs, CWF 2 pcs, TL83 2 pcs, F 6 pcs |
| Optional accessory | 45 degree table |
Company Information:
Certificates:
ISO9001, CE, FCC, ROHS, TUV
