Single Angle 60 Degree Digital Gloss Meter HG60 Silk 9x15mm With PC Software
9 x 15 mm Small Aperture 300gu Single Angle 60 Degree Portable Gloss Meter HG60 Silk Brand with PC Software

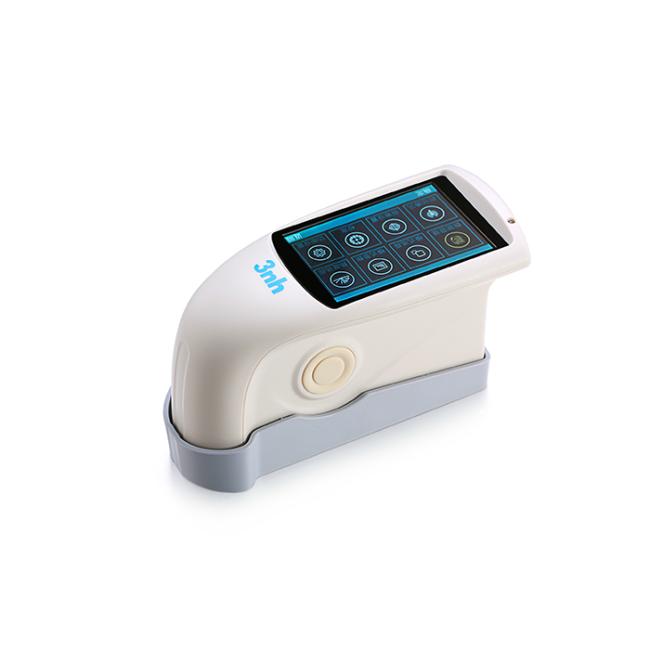

HG60 Economic Gloss Meter
HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Features:
- 1. 60° angle for semi gloss
- 2. Concise appearance, feel good
- 3. Display 5 sets of measurement data, good for comparison
- 4. Built-in lithium ion rechargeable battery
- 5. Basic model measurement can meet basic glossiness testing requirements
- 6. Connect to PC, more extend functions
- 7. One button for all angles measurement at the same location
- 8. Comply with international standards
- 9. Stable performance, easy to read data.
GQC6 Software Introduction:
GQC6 software is used with Silk gloss meter for PC connection, measurement, data management, data export, print reports, etc.
Specifications:
| HG60 Economic Gloss Meter | ||
| Model: | HG60 | |
| Measuring Angle | 60° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
|
| Measuring Area (mm) | 9x15 | |
| Measuring Range | 0~300GU | |
| Division Value | 0.1GU | |
|
Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-300GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
|
| Measurement Standard | Conform with JJG696 first class glossmeter working requirement | |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source | |
| Errors | ±1.5 , ± 1.5% | |
| Measuring Time | 0.5s | |
| Dimension | L*W*H : 160mm*75mm*90mm | |
| Weight | 350g | |
| Language | Chinese/English | |
| Battery | 3200mAh Li-ion Battery , >10000 times(within 8 hours) | |
| Display | TFT 3.5 inch | |
| Interface | USB/RS-232 | |
| Storage | Basic mode: 1000 | |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. | |
| Operation Temperature | 0~40℃(32~104°F) | |
| Storage Temperature | -20~50℃(-4~122°F) | |
| Humidity | <85% relative humidity, no condensation | |

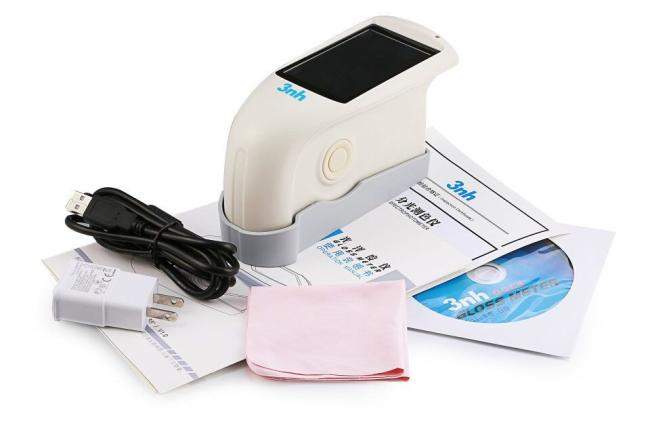

| Standard Accessories | Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate | |
| Optional Accessories | Miniature Printer | |
| Note | The specifications are subject to change without notice. | |
Keywords: gloss meter, glossmeter, glossness meter

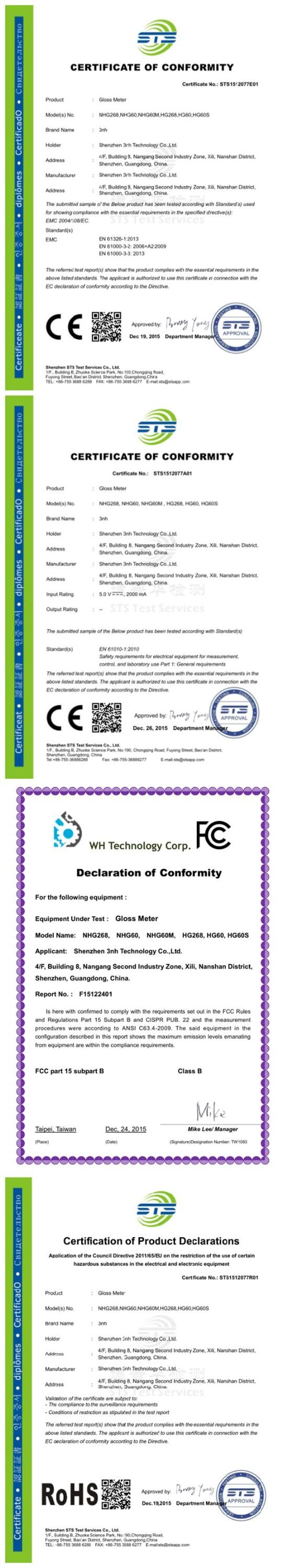

Silk gloss meter glossness passed CE, FCC, ROHS, certifications.
All our gloss meter glossness products have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
