Silk Light Box Color Assessment Cabinet 60cm Lamp Length ISO/CE/FCC Certificated
Silk Color Controller Color Checking Light Box Since in 1998
Brief Introduction & Application:
Brand: Silk-Silk Made in China
P60+S color mataching cabinet with a stell base, it is strong enough for industry used . It can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
P60+S Color light box Features:
Ø Steel Base, more stable and durable；
Ø Composite engineering plastics ensure the material non-tellowing,non-defrmation, and no painting falling off within 10 years;

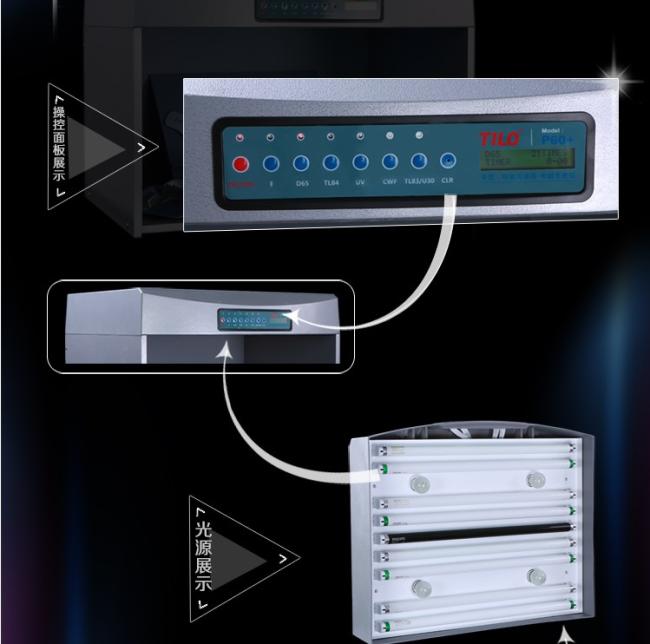

Ø Easy to operate by using individual switches for each light source;
Ø Seamless design to ensure no light source leakage and there are no interference between light sources;
Ø It can add flexible mat to ensure the stable and avoid the table-board painting peel off ;
Ø It can show the using times, lamps name and trun on or turn off times.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The light source can made by customized.
| Description | Model | D65 | TL84 | F | UV | CWF | U30 | Voltage |
| Color Light Box | P60+S | 2pcs | 1pcs | 4pcs | 1pcs | 2pcs | 2pcs | 220V/60HZ |
About Light Sources:
| Item | Name | Model | D65 | TL84 | F | UV | CWF | TL83 (U30) | Power Supply |
| 10107 | Standard Color Light Box | P60+Six light source(220V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 220V/50Hz |
| 10107 | Standard Color Light Box | P60+Six light source(110V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 110V/60Hz |
| Item | Name | Model | D65 | TL84 | F | UV | CWF | Power Supply |
| 10115 | Standard Color Light Box | T60+Five light source (220V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 220V/50Hz |
| 10115 | Standard Color Light Box | T60+Five light source (110V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 110V/60Hz |
| Project | parameters |
| Configuration | D65/TL84/CWF/F/UV /U30 Six light sources |
| Size(L*W*H) | 695x552x502mm |
| Weight | 19.5kg |
| Light source | ||
| Name | Color temperature | Pweor |
| D65 International standard Artificial Daylight | 6500K | 18W |
| TL84 Applied to stores in Europe, Japan and China | 4000K | 18W |
| CWF American Standard | 4150K | 20W |
| F "Sun-setting Light Yellow" incandescent light source(imitation of sunset) | 2700K | 40W |
| UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | 365nm | 18W |
| TL83 Warm White Fluorescent European Standard | 3000K | 18W |

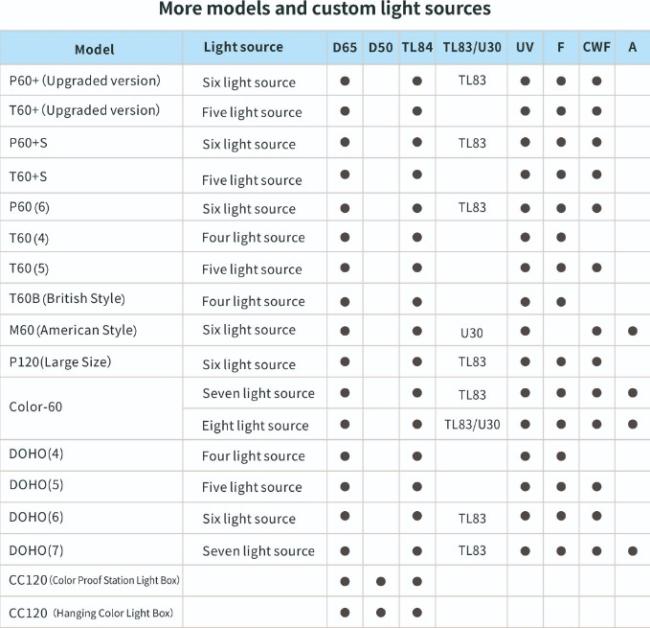

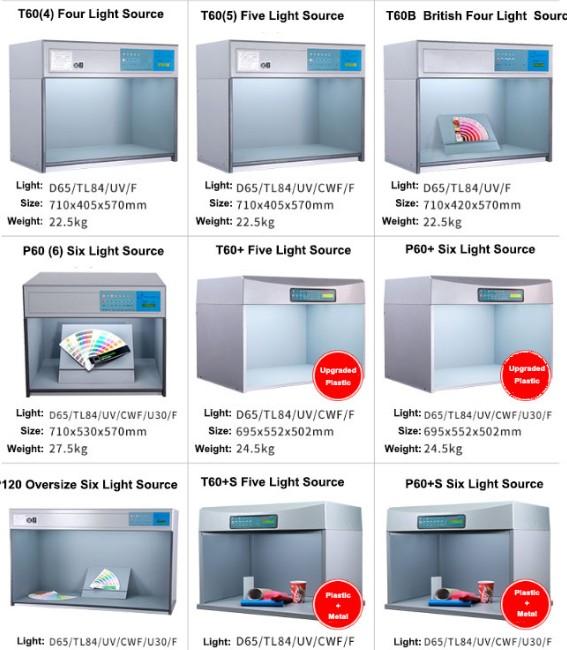

Related Model:
Application:
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
