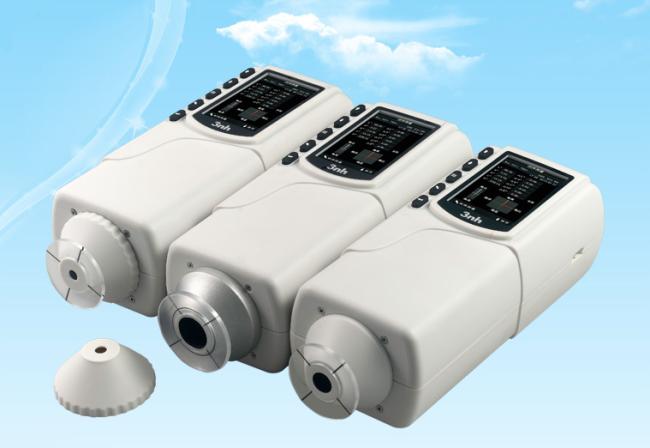

CQCS3 Software 8mm Aperture Handheld Colorimeter Silk NR145
Cheap 8mm handheld colorimeter color test equipment NR145 Silk with powder test box for powder paint color difference
NR145 colorimeter is a model of colorimeter with powerful functions, high accuracy and competitive price, which has integrated the advantages of the similar products of the famous international brands. It also goes with our own innovative technology and patents, like illumination locating and cross locating, built-in white plate parameters.
It is configured with multiple color space systems and color difference formulas, all of which have endowed NR145 with powerful functions to meet the requests of all kinds of color measurements.
Its friendly interface makes operation very simple. And once connected with PC via the software CQCS3 whose complete independent intellectual property right is owned by Silk, more powerful extension functions will be at hand, like color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management and simulating object color, etc.
Product Advantages
NR145 Colorimeter Product Specifications
| Model | NR145 Precision Colorimeter |
| Illuminating/Viewing Geometry | 45°/0° |
| Measuring Aperture | Φ8mm |
| Measurement End-face | Large stable end face and small concave-convex end face |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Color Space |
CIEL*a*b*C*h* CIEL*a*b* CIEXYZ |
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80ΔE*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability |
Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
| Weight | 500g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | The first charging time is 8 hours--100% electricity |
| PC Software | CQCS3 Software |
| Printer (optional) |
Miniature thermal printer |
