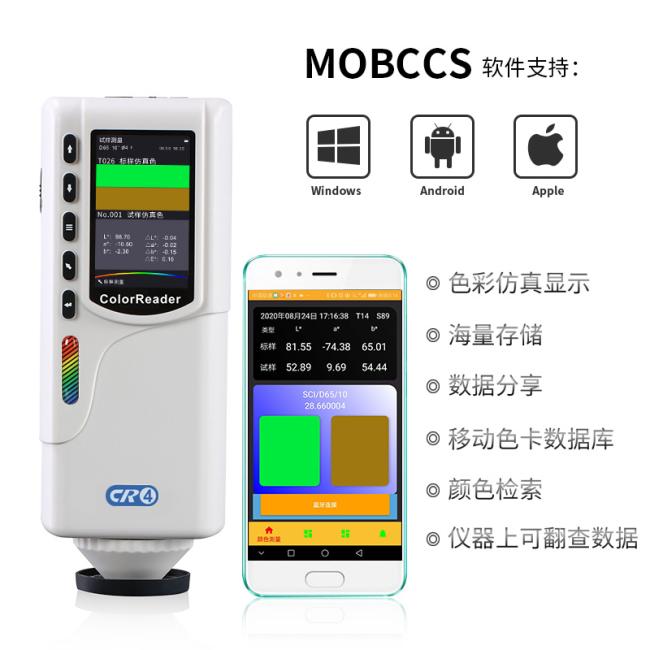

CIE Lab Handheld Colorimeter CR4 LED Light Excitation 3200mAh
Price:
Discuss
MOQ:
1 Unit
Delivery Time:
1-3 work days
Brand:
Silk
Product Description
| Model | CR4 |
| OpticalGeometry | 8/D (8°illumination diffuse acceptance) SCI Comply with standard CIE No.15 GB/T 3978 |
| Application | Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing ceramics and other industries. Find the color card through the mobile APP |
| IntegratingSphereSize | 40mm |
| Light Source Device | 360nm-780nm Combined LED Lamp |
| SpectroscopicMethod | Plane-Grating |
| Sensor | CMOS Sensor |
| SpectralRange | 400~700 nm |
| Measurement Aperture | Φ4mm |
| Light-included Mode | SCI |
| Color Spaces | CIE LAB LCh |
| Color difference formulas | ΔE*ab |
| OtherColorimetricData | Spectral curve (only in APP) |
| Division Value | 0.1 |
| Observer | 10° |
| Illuminant | D65 |
| Displayed Data | Chromaticity Values Color Difference Values Pass/Fail Result Color Simulation Color Offset |
| Measurement Time | About 1.2s |
| Repeatability | Chromaticity value: withinΔE*ab 0.1 (After calibration measure the average value of the whiteboard 30 times at 5s intervals) |
| Accuracy | Does not guarantee to pass the national metrology |
| MeasurementMethod | Single measurement average measurement (2~99 times) |
| LocateMode | / |
| Size | 205X67X80mm |
| Weight | About 500g |
| Battery Performance | Rechargeable Li-ion battery 3.7V @ 3200mAh |
| Life Lamp | More than 1.6 million measurements in 5 years |
| Screen | TFT true color 2.8inch@(16:9) |
| Interface | USB (charge only); Bluetooth 5.0 |
| Data storage | 100pcs standard samples 10000pcs samples storage can be extended through mobile APP |
| Data viewing | APP supports massive search; Device supports 5 latest standard samples and 5 samples data viewing |
| Languages | Simplified Chinese English |
| Operating Environment | Temperature: 0~40°C; Humidity: 0~85% (No Condensation) Altitude: less than 2000m |
| Storage Environment | -20~50℃ 0~85%RH (no condensation) |
| Standard Accessories | Power adapter manual MOBCCS APP software (download from official website Android platform) USB cable whiteboard box wrist strap Φ4mm flat aperture |
| Optional Accessories | USB Micro PrinterPowder test box |
| Note | Technical parameters are for reference only subject to actual product |
