Cabinet Mortise Mount Invisible Hinge Heavy Duty Invisible Door Hinges
Cabinet Mortise Mount Invisible Hinge Heavy Duty Invisible Door Hinges
Item No.: AG007
Height x Wing width x gap between wings=13x45x9mm
Name: 13x45mm Cabinet Mortise Mount Invisible Hinge for Cupboard Wardrobe door
| 1, Size(HxWxGap) | 13x45x9mm. |
| 2, Min door thickness | 20mm. |
| 3, Product material | Casting Zinc alloy body, SS 201 connecting arms. |
| 4, Popular surface finishes |
Satin Chrome, Satin Nickel, Antique brass, Antique copper, PVD. |
| 5, Main usage | Cupboard, Wardrobe, Bookcase, Bathroom cabinet etc. |
| 6, Residential&Commercial Usage | Both available. |
| 7, Weight loading | 15 kgs/3 pcs. |
| 8, Open degree | 180°. |
| 9, Distinguishing for left or right | No. |
| 10, Quality testing&certificate | SGS, CNAS, MA, AL, Work Safety Standardization. |
| 11, Advantages | Drilling to be invisible installation,Concealed for a complete flush look, high sensory, durable and silent. |
Mortise Mount Invisible Hinge is the best choice for your Cabinets:
Mortise Mount Invisible Hinges are designed to be invisible when the cabinet is closed. They are hidden inside the door and the frame so that only a small part is visible when the door is open. These hinges are expensive and difficult to install. They require extensive shrouds cut in the door and the frame, which is a complex task that is best, left to master carpenters. Mortise Mount Invisible Hinges are used in high-end cabinetry, and are designed for all types of cabinet designs.
Mortise Mount Invisible Hinges create a fold in the paper template with door hardware in the annotated line. Poke a hole through the drill bit indicators in the template with a pencil. Use the template to guide the shape holes in the door with a drill fitted with drills of appropriate size.
Security - When closed, the Mortise Mount Invisible Hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
Strength - The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger, more rigid installation.
Superior Construction - Mortise Mount Invisible Hinges are designed to give dependable operation for years. Standard hinges are made of high strength plated steel and heavy duty zinc alloy castings.
Reasons to buy Mortise Mount Invisible Hinges from us:
1, More than 18 years of professional manufacturing experience on Invisible Hinges;
2, Strict product quality control by advanced equipment and excellent R&D Team;
3, Quick and timely delivery;
4, Proper and sturdy packing;
5, Small order welcomed(1-100 pcs no problem);
6, Perfect after-sales service and product use tracking;
7, More than 99% of the praise rate through the 18 years.
Queations you may ask:
|
1, Samples' free or charged including the express cost? Samples' cost less than USD 50.00 will not be charged, express cost on customer's side. |
|
2, Factory area and number of employees? 5000 ㎡&100 workers |
|
3, Delivery time for regular orders?
We always keep s small amount of stock(around 1000 pcs for each sizes), and for mass orders, certainly finish from 15 days up to 30 days. |
|
4, Your capacity for one month?
Up to 500,000 pcs accoding to different sizes. |
|
5, Your annual sales value? In 2017, exceed 6 million dollars. |
|
6, How will you treat on after-sale quality problems?
If responsibility confirmed on our side, we will make full compensation for free including shipping charge. |

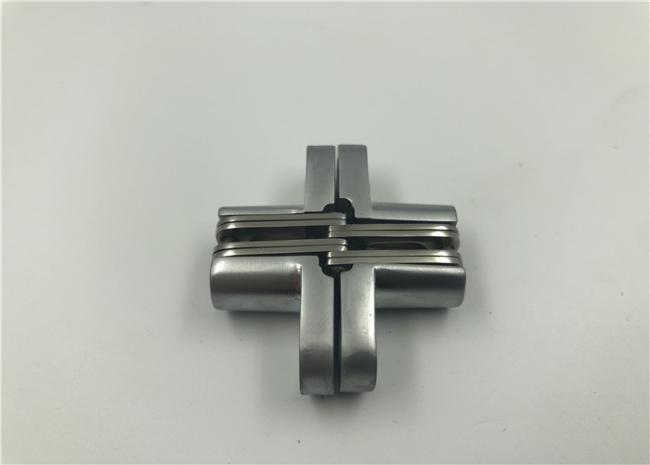

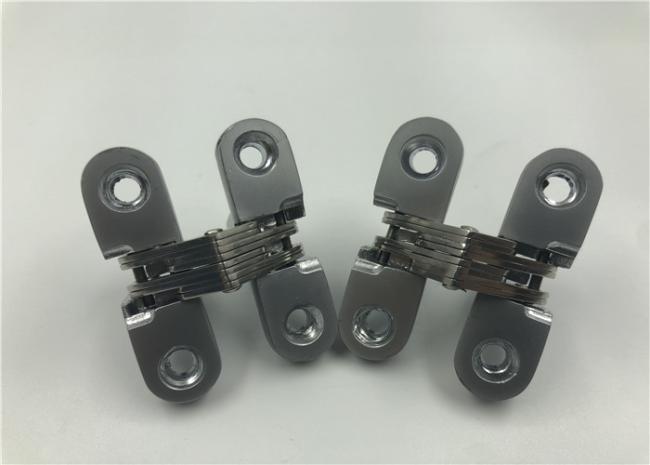

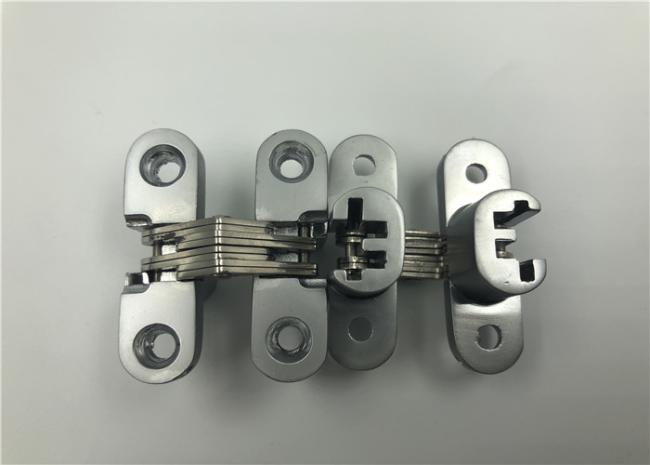

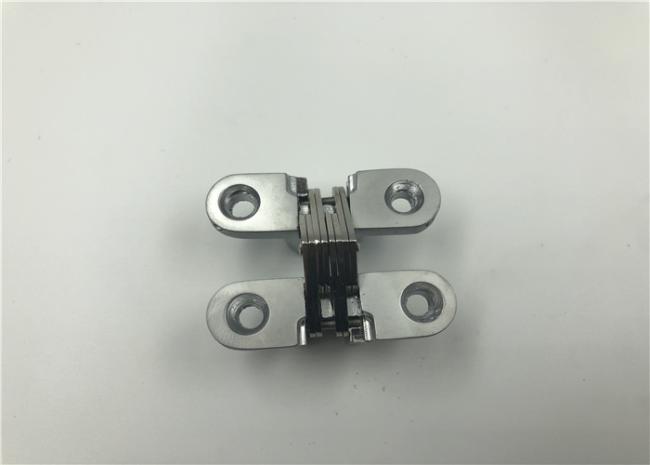

Pearl Chrome Photos' show:
