Anti Corrosive Right Open 3D Concealed Hinges For Light Wooden Metal Door
Anti Corrosive Right Open 3D Concealed Hinges For Light Wooden Metal Door
Item No.: BG004 (for Right open door)
Name: 23x95mm Right open 3D Concealed Hinge for Light Wooden Metal Door
Details:
| Size(Width x Height): | 23x95mm |
| Material: | Zinc alloy |
| Adjustment range | up&down±1.0mm, left&right: ±1mm, front&back:±1mm. |
| Popular surface finishes: | Satin Chrome / Satin Nickel / Antique Brass,
Antique Copper / Bright Gold Plated / Pearl Chrome / PVD. |
| Main usage: | Wooden door, Folding door, Aluminum door, Interior door etc |
| Weight loading: | 40 kgs/3 pcs. |
| Distinguishing for left or right: | Yes, BG004 is right open style. |
| Min door thickness: | 35mm |
| Open&Close: | 100,000 |
| Service life: | ＞5 years |
| Advantages: | Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality, high sensory, durable and silent |
Adjustable 3D Concealed Hinge Introduction:

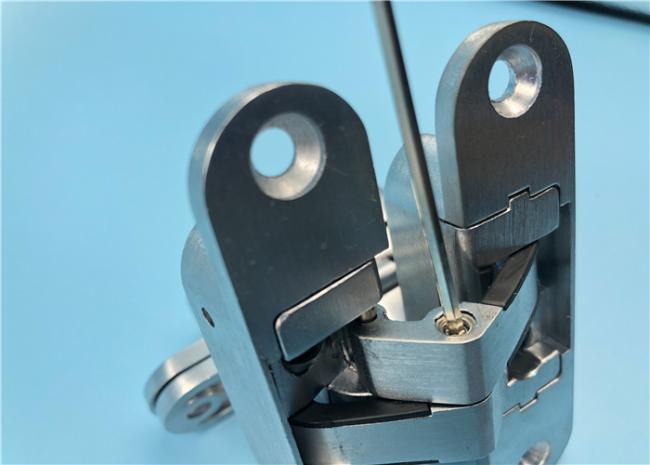

Our High Quality Adjustable 3D Concealed Door Hinge BG004 is for use in metal or wood applications. This door hinge will provide superior appearance and durability. These hinges are used where compact size, smooth operation, and flush fit are necessary Concealed Hinges open a full 180° and are a single action hinge. The biggest feature is that this hinge can be adjusted by three demensions after installation without disassemblying door leaves: up&down±1.0mm, left&right: ±1mm, front&back:±1mm. So if the doors shaped a little during the process of use, you can adjust back just by a allen key.
Designers spend time detailing an "invisible" door, they may go through endless rounds of picking veneer to match the grain exactly, and simply want to keep clean and dead-even gaps around their door panels. Because our hinge is adjustable in 3 dimensions large and heavy doors can be installed quickly, saving money for the millworker and installer and insuring it all looks sharp in the end. In reality, for detail-driven designers, nothing is ever really invisible. So, when you open that door, at the very least, the hinge better match the finish of the hardware on the rest of the project.
About Us
JINKAILI Hardware Established in 2000 in Jiangmen Guangdong(China Door Hardware Center). we are a professional manufacture for Door&Project&Decorative Hardware products. Our factory covers an area of 4000 square meters.
Our main product lines contain: SOSS Invisible Hinges; 3D Adjustable Concealed Hinges; Door Stoppers; Door Bolts; Door Security Buckle&Chain; Indicator Knob&Lock; Pull Rings; Bathroom Locks; Other door hardware fittings.
JINKAILI insists on the concept of “Constantly Improving Technological Innovation&Creating Excellent Quality”, and works hard for supplying
the best product&service for customers. We hope to establish stable win-win long term business cooperation with customer all over the world.
Welcome to contact us&visit our factory!

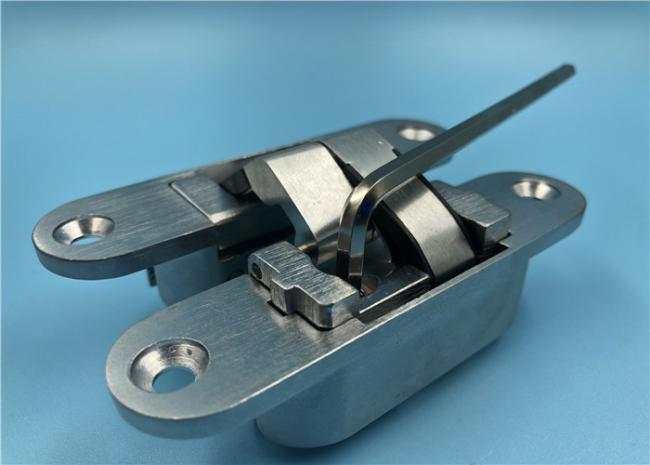

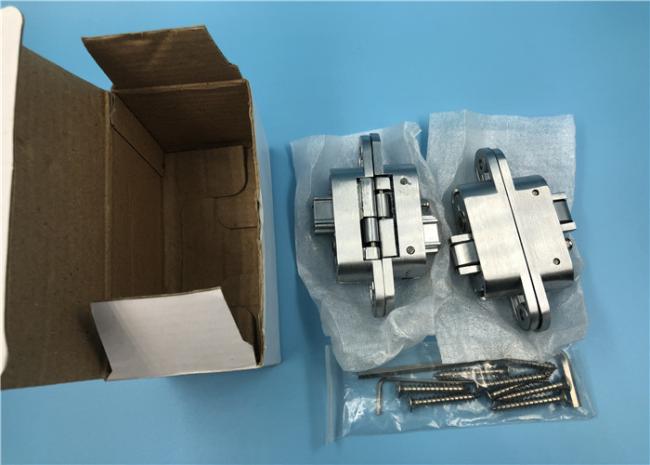

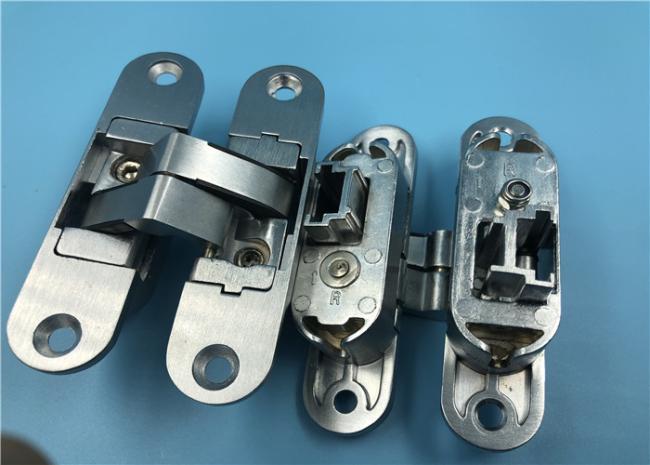

Real Photos in Satin Chrome finish
