Customized Size Mortise Mount Invisible Hinge For Metal Or Wood Door

SOSS Invisible Hinge Features:

SOSS invisible hinges are perfect for applications where a flush fit, smooth operation, and a compact size are necessary features, as well as being concealed from view.

When closed, hinge cannot be seen or tampered with;

When open, hinge appears compact and elegant;

180 degree opening angle for easy access;

Multilayer link construction reduces friction for a smooth free hinge operation;

Many sizes and finishes available as special orders.

Our High Quality SOSS Invisible Door Hinge is for use in metal or wood applications. This full size door hinge will provide superior appearance and durability. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS Concealed Hinges open a full 180° and are a single action hinge. Multiple Finishes Available!

The Underwriters Laboratories labeled the model #CG002 SOSS Invisible Hinge can be used on hollow metal, sheet metal, tin clad, steel composite or wood core swinging type fire doors and frames with a 90 minute rating.

Use at least one fire-rated hinge for every 20" of door height or portion thereof, or one hinge for every 60 lbs. or fraction thereof, whichever calculation demand more hinges.

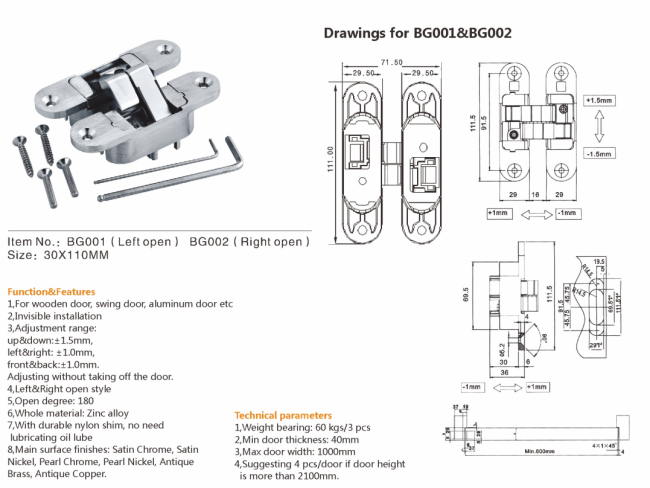

SOSS Invisible Hinge Parameters:

Invisible, but not unsightly.

Our 3D Adjustable Concealed hinge has been going from being a welcome technologically superior substitute for other "invisible" hinges when the odd concealed door was detailed, to one that is being throughout a project's interior and exterior doors. This acceptance has grown from a realization by contractor, millworker and architect alike of the significant cost savings that an adjustable hinge can bring to the project.

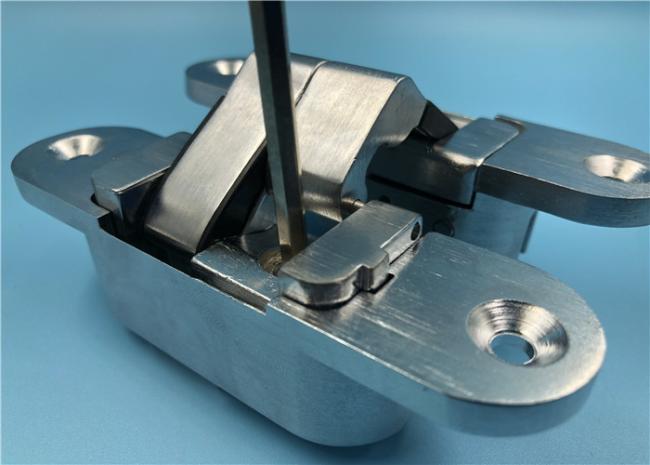

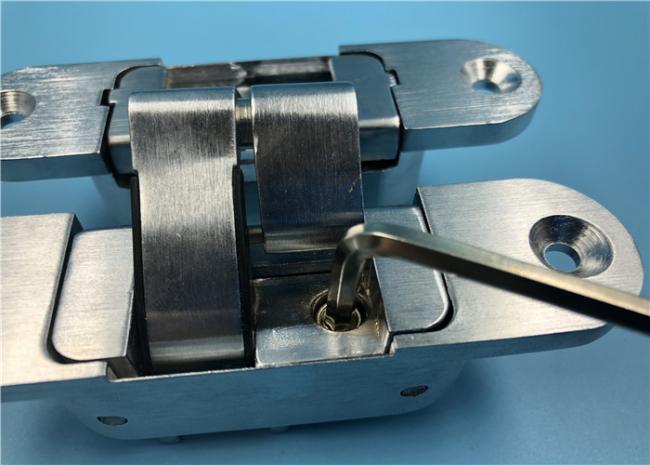

3D Concealed Hinges details
