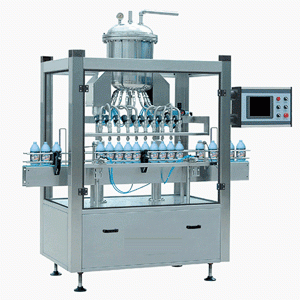

Coffee Hot Liquid Filling Machine 16000bph
RCGF40-40-12 2018most popular grape juice filling machine Exported to Worldwide
Description:
The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.
Feature:
1.High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.
2.Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.
3.Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.
Specification:
| Model | RCGF16-16-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| capacity(BPH) | 4000-5000 | 5000-6000 | 6000-8000 | 8000-10000 | 16000-18000 |
| can bottles type | Bottle Diameter:φ50mm-φ100mm;Height:150mm-310mm | ||||
| pressure of washing bottle(mpa) | 0.2-0.25 | ||||
| watering consumption(kg/h) | 1200 | 1500 | 1800 | 2400 | 3200 |
| compressed air pressure(mpa) | 0.6 -0.8 | ||||
| Air consumption(m3/min) | 0.1 | 0.4 | 0.4 | 0.5 | 0.8 |
| Total power (kw) | 2.2 | 3 | 4 | 6.2 | 7.5 |
| Total weight (kg) | 2500 | 2800 | 3500 | 6000 | 8500 |
| Dimension (mm) | 2350x1750x2250 | 2480x1960x2250 | 3010x2180x2400 | 4000x2200x2500 | |
Details:
Washing part:
1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.
3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.
4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.
5). Washing part moves by a frame in the transmission system through the gear transmission.
Tag:hot machine,filling equipment company,hot fill packaging
