Full automatic 120 capsules per minute Wine PVC wine Capsule machine

HG120-3A

1 Output (depends on design of capsule and quality of material)

1-1 Design production capacity of the machine 100 PCS/min

1-2 Normal production capacity of the machine 90 PCS/min

Note:

Gilding on the cap top and Embossing on the cap top are operated at the same place of the machine, but they can not be run at the same time.

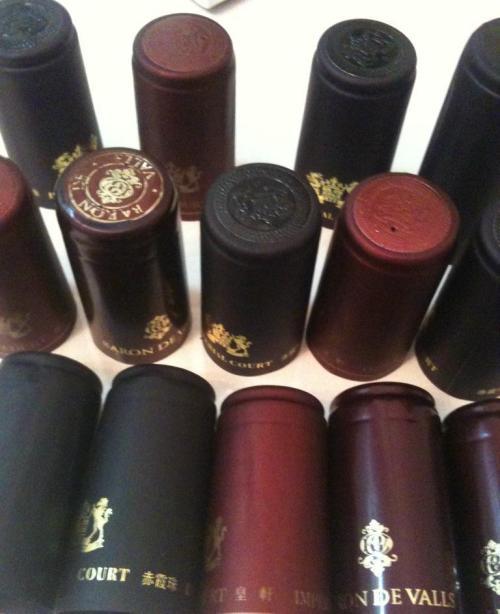

2 Specification of PVC Capsule

2-1 Top diameter 27mm~6m

2-2 Bottom diameter Maximum 65mm

2-3 Height 45mm ~70mm

2-4 Taper about 1.5°~5°

Note: Different sizes of caps need different moulds.

(Basic configuration: 10 moulds/set, 1 set for a machine)

If you want us to customize more than one set of moulds for a machine, you have to pay extra money.

3 Main Materials (PVC Thermal Shrink Film )

1-3-1 Diameter of roll center 3" (76mm)

1-3-2 Outer diameter of material roll Maximum 400mm

1-3-3 Width of material roll Maximum 210mm

1-3-4 Thickness of PVC material roll 0.065 mm ~0.08mm

4 Top Cap Material (Aluminum Foil or PVC Hard Strip )

1-4-1 Diameter of roll center 3" (76mm)

1-4-2 Outer diameter of material roll (Maximum) 280mm

1-4-3 Width of material roll (Maximum) 40mm

1-4-4 Thickness of material roll 0.05mm~0.08mm

5 Size of Machine: 3900mmX1340mmX1500mm

6 Weight of Machine: 2412kg with reference to QY100-2.

Weight of customized model is subject to final finished machine.

7 Power: three-phase380v, 13.5kw
