Auditorium Tiered Folding Retractable Grandstand Seating
Auditorium Tiered Folding Retractable Grandstand Seating
Details of Auditoriums Folding Seat
Burgeon Primy auditoriums folding seat unitized upholstery panel comprised of medium density virgin urethane foam on a precision plywood backer. The fabric cover is tensioned over and neatly enclose both foam and backer. The seat, back and arm rotate together into the upright position, which can make it closed envelop with a narrow depth.
Features of Auditoriums Folding Seat
- Ergonomically designed for the superior comfort.
- Designed for comfort with good lumbar support.
- Slim profile for safe and easy access.
- Enclosed spring tip mechanism for safety and silent action.
- Armrests automatically fold away as the chair tips up.
- Fully or padded upholstered seat base
- Leather or fabric upholstery is available
- Backrest is available.
Parameters of Auditoriums Folding Seat
| Product Name | Auditoriums Folding Seat Upholstered Seat |
| Seat spacing minimum | 500mm |
| Seat width | 437mm |
| Seat height | 465mm |
| Chair height | 860mm |
| Seat pan depth | 619mm |
| Row Depth | 850 mm- 900 mm |
| C/C Width | 500-550mm |
| Row Riser Height | 270mm-350 mm |
| Stair Width | 1000mm |
| Frame Material |
Steel with powder coating decking: anti-slip plywood deck |
| Steel Surface Color | black, grey, blue color or customized |
| Fabric Color | Please refer to Burgeon color swatch |
| Operation | Manual or Electricity |
| Test Report | EN 13200-5 |
Application of Auditoriums Folding Seat
Burgeon primy auditoriums folding seat can be apply for many different performing arts venues, arenas, conference centers, theatres and auditoriums where the need is for a comfortable upholstered chair.

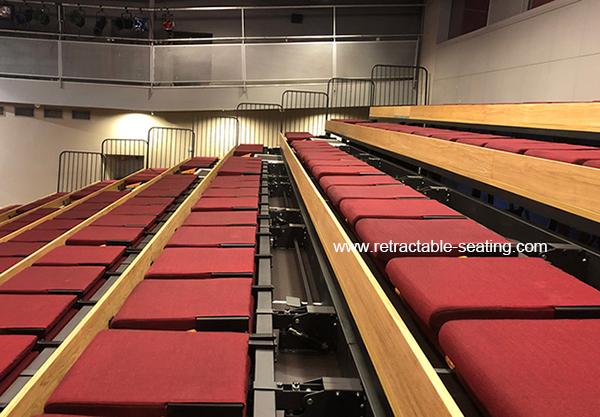

Understructure of Retractable Auditorium seat system
The retractable seating system adopts slant frame understructure plus door frame construction. This structure will give the whole grandstand better vertical and horizontal loading capacity. This capacity makes our steel structures much more safe and strong.
Accessories of Auditoriums Folding Seat
- Variable Row 1 (VR1): Provide first row recoverable modular seating units to be utilized for both wheelchairs and able-bodied persons. Each VR1 unit shall have a system for easy deployment if wheelchair or team seating access is needed. the system shall lock the bleacher seats into position when fully opened.
- Front Aisle Steps: Provide at each vertical aisle location front aisle step. Front steps shall engage with front row to prevent accidental separation or movement. Steps shall be fitted with four non-skid rubber pads. Quantity and location as indicated.
- Foot Level Aisles: Provide deck level full width vertical aisles located as indicated.
- Intermediate Aisle Handrails: Provide single pedestal mount handrails 900mm high with terminating mid rail. Handrails shall be attached to the socket and shall rotate 90° for easy storage in socket.
