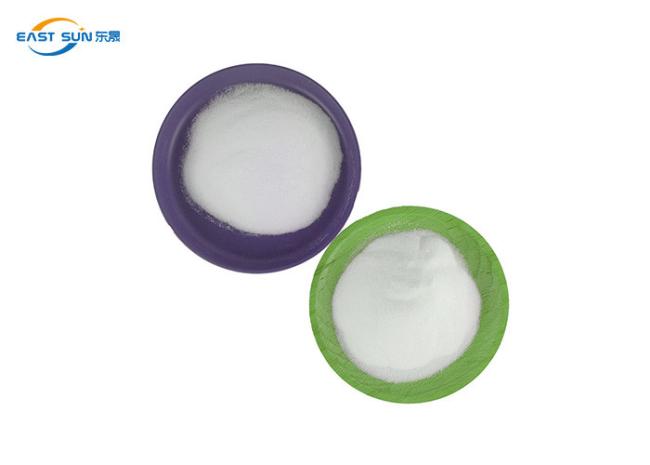

Heat Transfer 1kg 2kg 5kg White TPU Powder Hot Melt Adhesive DTF Powder
Heat Transfer 1kg 2kg 5kg White Tpu Powder Hot Melt Adhesive DTF Powder
DTF Hot Melt Powder Description
DTF Powder Product model: DS220
Activation Methods: DTF TPU hot melt adhesive powder can be activated through heat and pressure, but there are different methods available:
Heat Press: The most common method is using a heat press machine. The DTF film with the printed design and the fabric are sandwiched together and subjected to high heat and pressure. The heat press machine ensures even distribution of heat and pressure, resulting in a consistent and reliable transfer.
Conveyor Belt System: Some manufacturers offer conveyor belt systems designed specifically for DTF printing. These systems allow for continuous production, with the DTF film and fabric passing through a heated conveyor belt under pressure to activate the adhesive powder.
Heat Tunnel: Heat tunnels are another option for activating the adhesive powder. The DTF film and fabric are passed through a tunnel where hot air circulates, applying heat to activate the adhesive. This method is suitable for larger-scale production and can provide consistent results.
DTF TPU Powder Physical Characteristics:
| Property | Criterion |
| Appearance | White powder |
| Composition | TPU |
| Density ASTM D-792 | 1.20±0.02 g/cm³ |
| Melting Point DSC | 95-115 ℃ |
| Melt Index ASTM D-1238 | 30±7 g/10min |
| Hardness | 80±3 Shore A |
| Powder size range | 0-80 um,80-200um,150-250um |
| Resistance to yellowing (level) | 2.0-3.0 |
DTF Powder Application:
DS220 is used in clothing, luggage, shoe materials and heat transfer industries.
DTF Powder Technical Parameters:
|
Bonding Parameters ( reference only) |
Temperature | 110-130℃ |
| Press | 1.5-2.5 kg/cm2 | |
| Time | 8-15 S | |
| Washing Resistance | 40℃ | Excellent |
| 60℃ | Good | |
| 90℃ | / |
Delivery Detail: Shipping in 3-5 days after payment for sample. For bulk 3-10 days which depend on the quantity of customer order.
Packaging Details: 20kg/bag or it's up on the customer's option.
DTF powder Customer feedback
Q2) . What type of hot melt adhesive powder do you have?
We have PA ,TPU, EVA and PES powder. We can accord your application to give your suitable type.
Q3). What is your Particle size ?
0-80um, 80-170um , 150um-250um ,200um-400um
Yes, we can provide 0.3-0.5kg free sample, only need you to pay the shipping cost. We will make the sample within 1- 2 working
days and it will take 3-7days on the transportation.
