TPU Hot Melt Adhesive Film for Embroidery and Leather Phone Case
DS8614 is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. It exhibits excellent adhesion to a variety of materials, including textiles, TPU (thermoplastic polyurethane), and PVC (polyvinyl chloride). It offers a superior tactile experience with a good feel and resilience, making it ideal for applications where comfort and flexibility are crucial. Additionally, it boasts excellent cold resistance, ensuring reliable performance even in low-temperature environments. This makes it a versatile and durable choice for a wide range of industrial and consumer applications.
| Colour | Foggy translucent |
| Release Protection | Glassine Release Paper |
| Thickness Range | 0.025mm - 0.30mm |
| Width Range | 5mm - 1580mm |
| Proportion | 1.18±0.02g/cm³ |
| Melt Flow Index | 12±5g/10min(ASTM D1238-04) |
| Hardness | 85±3 (Shore A) |
| Melting Range | 35-60℃ (ISO11357) |
| TG Temperature | -35±8℃ (GB/T 19466.2-2004) |
| Activation Temperature | 110-145℃ (Tunsing) |
| First Lamination | Second Implanting | ||
|---|---|---|---|
| Mechanical Mold Temperature | 130℃-150℃ | Mechanical Mold Temperature | 130℃-170℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |

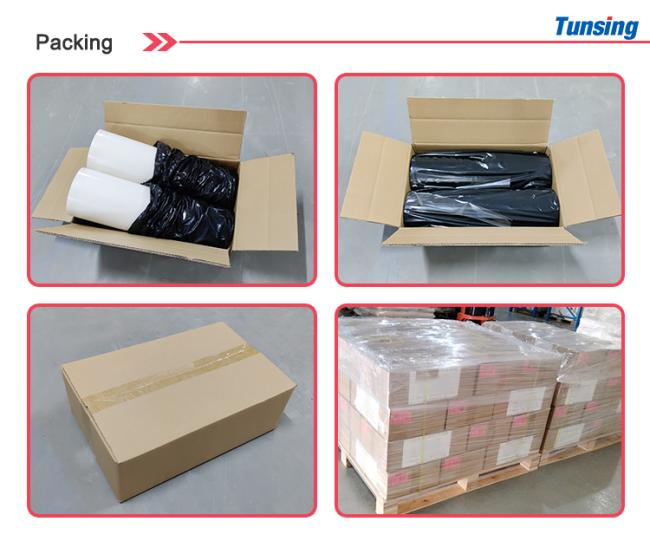

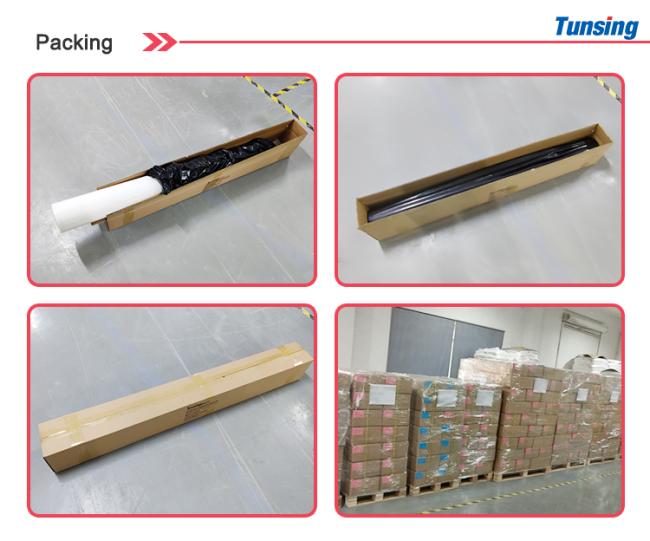

- Packed by cartons
- Small width size is packed for two rolls per carton
- Large width size is packed for one roll per carton
- The roll is with black plastic for protecting the hot melt adhesive film

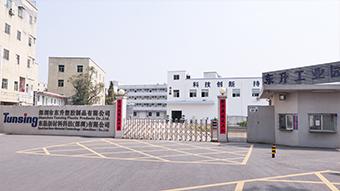

Shenzhen Tunsing Plastic Products Co.,Ltd. was established in 2007 and is located in the forefront of technology in Shenzhen City, China, covering an area of 10,000 square meters. It has a professional polymer technology team led by Master and PhD engineering. Our company specializes in R&D, production and sales of various modified hot melt adhesives, hot melt adhesive granules, hot melt adhesive film, hot melt adhesive powder, functional film coating, ultra-fine cryogenic powder grinding and die-cutting products.
The company has passed ISO9001:2015 quality management system, ISO 14001:2015 environmental management system and ISO 45001 occupational health and safety management system certification, and adopts the two-way standardized combination model of ERP and ISO9001 to systematically control all aspects of R&D, incoming materials, planning, production and quality. All the products comply with environmental protection standards such as RoHS, REACH, Oeko-tex and other environmental standards, and we are committed to creating an environment-friendly factory.
The products are used in 3C electronics, 5G, new energy, medical care, sporting goods, luggage, clothing, and footwear. Our company has multi-functional laboratory for material analysis experiments, thermal analysis experiments, mechanical performance experiments, and environmental experiments. Experimental workshop with twin-screw underwater cutting testing machine, casting tensile testing machine, scraper coating test machine, liquid nitrogen cryogenic grinding test machine. While systematically controlling R&D, incoming materials, planning, production, quality and other links, our company can also simulate the processing and application testing of different needs of customers.
Tunsing is a professional hot melt adhesive manufacturer, let us be your bonding provider
Top professional design team led by Master and PHD.
180 seconds/time refresh equipment status after sales response < 30 minutes
Professional and standard quality control Make the good brand of Lien and Made.in-china, ISO9001, IS014001, OEKO-TEX, Rohs, Reack, CP65
Has successfully markets in North America, Europe, Middle East, East and South East
