Low Melting Point Hot Melt Adhesive Film For Woodworking
Low Melting Point Hot Melt Adhesive Film For Woodworking

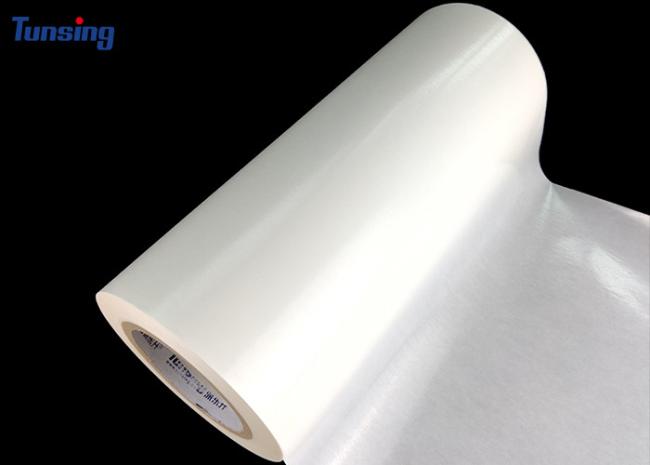

This product is a thermoplastic hot melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS and has low use temperature, easy processing and excellent cold resistance.non-woven fabrics, TPU, PVC, Paper, wood etc.
Composition:
Polyurethane
Application:
DS8606 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sporting goods.
Packaging Details:100Y/roll , 1rolls/ctn
Delivery Detail:Shipped in 3-5 days after payment
TPU Hot Melt Adhesive Film Physical characteristics:
|
Color |
Foggy translucent |
Release Protection |
Glassine Release Paper |
|
Density |
1.18±0.02g/cm³ |
Thickness |
0.0125mm-0.15mm |
|
Opening time |
7min |
Width |
5mm-1480mm |
|
Melt Flow Index |
30±10g/10mins |
Conventional Thickness |
0.05mm |
|
Hardness |
90±4 (Shore A) |
Conventional Width |
1380mm |
|
Melting Range |
70-95℃ |
Conventional Length |
100 yards |
Hot Melt Glue Film Recommended Bonding Conditions:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
90℃-120℃ |
Mechanical Mold Temperature |
100℃-130℃ |
|
Time |
5-15 seconds |
Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa
|
