Tpu Polyurethane Film Roll TPU Hot Melt Adhesive Glue

Price Negotiable
Price: EXW:USD0.6-2.96/y
MOQ: 100Y
Delivery Time: 3-7work days
Brand: Tunsing
Product Description

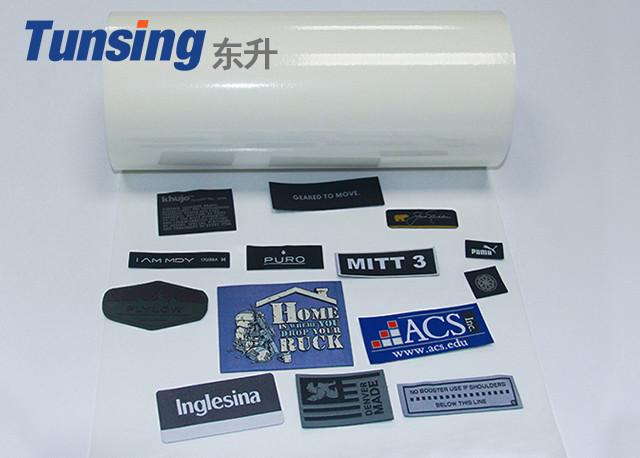

Tpu Polyurethane Film Roll TPU Hot Melt Adhesive Glue



Product:  DS8502



Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has low use temperature, easy processing and excellent cold resistance.


Application:
DS8502 applied to clothing, embroidery, footwear, bags, handbags, toys, sewing, sporting goods of adhesive material.

Composition:
Polyurethane

Physical Characteristics:
 Color Transparent Release Protection Glassine Release Paper
Proportion 1.18±0.02g/cm³ Thickness 0.0125mm-0.15mm
Opening Time 12min Width 5mm-1480mm
Liquidity Index 20±10g/10mins (ASTM D1238-04) Conventional Thickness 0.05mm,0.08mm,0.10mm
Hardness 72±3 (Shore A) Conventional Width 1380mm
Melting Range 94-120℃ (Tunsing DSC 214) Conventional Length 100 yards
Activation Temperature 116-145℃ (Tunsing) Trimmed Size 1380mm*100yards/roll











Recommended Bonding Conditions:

First Lamination Second Implanting
Mechanical Mold Temperature 120℃-150℃ Mechanical Mold Temperature 130℃-160℃
Time 5-15 seconds Packing Time 8-25 seconds
Pressure 0.3-0.6mpa Pressure 0.3-0.6mpa

1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.

2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.

Note: The seller hereby declares that Tunsing will refuse to accept the assurance of the components of the manufacturing process.

Tunsing firmly believes that the information content is reliable. However, the claims for possible problems will not be guaranteed for the components of a particular process. Before use, the manufacturer must determine the suitability of the product for the items to be used. The user must bear the risks and possible problems in the various manufacturing stages of testing and use. The Seller and the manufacturer shall not be liable for any direct injury, loss, damage or misuse.



Packing & Delivery

Company Profile

The exhibition:
FAQ:
1. Do you accept OEM or ODM?
Yes, we accept OEM and ODM, we are professional heat transfer material manufacturer, having more than 13 years experience. We assist your R&D new products. So if you need bonding some special materials, please don’t hesitate to let us konw.

2. How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area, we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way. Of course if you have other better idea about transport, we will accept it.

3. May I have your samples?
If you need some sample for reference,please let us know your fully address/ship mode with courier,and we will arrange sample for your reference.

4. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)

5. How do I pay for my order?
We accept T/T, PayPal.
