Turnable Ribbon Mixer Machine / Wall Lacquer Paint Mixer/Carbon Steel Factory
Turnable Ribbon Mixer Machine / Wall Lacquer Paint Mixer/Carbon Steel factory
Product Description of turnable ribbon mixer

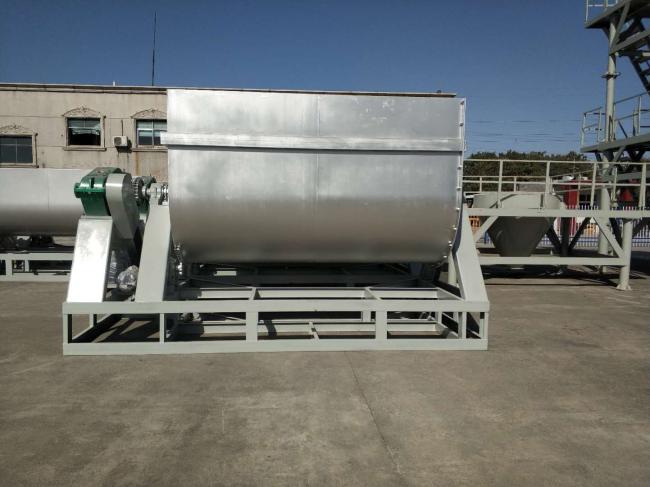

Ribbon Blender (also named ribbon mixer) is a basic industrial mixing machine.
They consist, basically, of a U or O type trough shell (usually 2 to 3 times longer than it is wide) with a semicircular bottom, fitted with a horizontal longitudinal shaft on which are mounted arms supporting a combination of ribbon blades, paddles or helical screws set at a fairly close clearance to the semicircular mixer body so that no layer of material remains on the bottom of the ribbon mixer.
1) With double ribbons,can be widly used in Putty,Dry Powder,Pesticide,Animal Fodder,Feed Additive,Corhart,Compound Fertilizer ,Food Industry etc.
2) Material can be both Stainless steel and Carbon steel.
3)It also can be used to mix thick material.
4) Capacity:500L-15000L
Our company Ribbon is easy use and maintains and clean, small occupies, high efficient and long service life;wall paint mixer machine is specialized in blending the resin emulsion with different gradations of sand particles.
Horizontal stainless steel lacquer mixers, with automatic limit switches, multiple protection, greatly improving the equipment, safety during operation. Mixer adopt outer and inner layers ribbon blender, coiled form with the rotational direction of the material from both ends toward the middle push, and the inner spiral push with the material from the middle to the ends that to form to convective mixing.
2. Technical Parameters of ribobn mixer machine
| Type(FMZZ-) | Power(kw) | Cylinder size(mm) | Dimension (mm) LWH |
| 1T | 5.5 | Φ850×1250 | 2140x900x1325 |
| 2T | 7.5 | Φ1050×1875 | 2940x1300x1800 |
| 3T | 11 | Φ1050×3530 | 3315x1300x1800 |
| 5T | 15 | Φ1400×2500 | 3850x1700x2240 |
| 10T | 22 | Φ1600×3000 | 4400x1700x2560 |
| 15T | 30 | Φ1600×4200 | 5250x1850x2600 |
| 20T | 37 | Φ1850×4300 | 6250x1900x2545 |
| 30T | 45 | Φ2300×4500 | 6300x2300x3150 |
| 50T | 50 | Φ3500*5000 | 7500x2700x3200 |
Overview:
Characteristics of steel ribobn mixer
2. Low noise. The pan mixer adopts the transmission of reducer, so the rotation is stable and the noise is low.
3. Reasonable structure. Feeding material from the top, and discharge material from the bottom.
4. The joint surfaces are tightly sealed, running smoothly.
