High Output Dry Powder Mixer Machine / Horizontal Screw Mixer Low Noise
High Output Dry Powder Mixer Machine / Horizontal Screw Mixer Low Noise
Advantage of Fair dry powder mixer

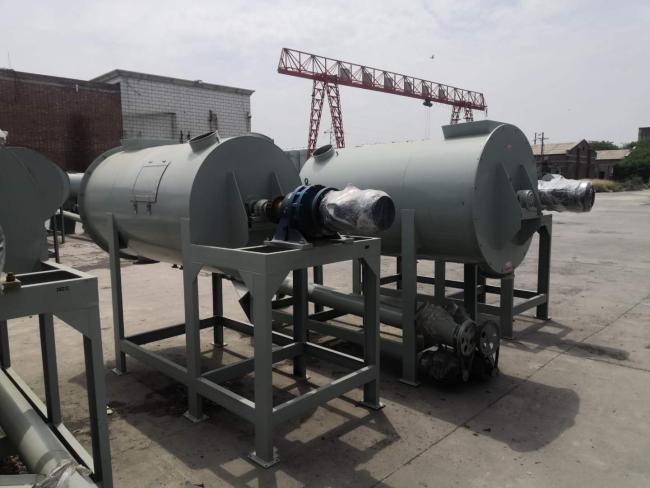

- Our dry power mixer is horizontal cylinder, has three layer inside and outside, has a unique structure, low noise, smooth operation, long service life, easy installation and maintenance;
- Widely used in external thermal insulation mortar powder, paint, waterproof materials, chemical, ceramics, refractory materials, and other industries;
- Fast mixing speed, high uniformity, no dead Angle,small residual.Can be fitted with screw hoist or bucket elevator according to the customer required,
- Horizontal body is equipped with a moving door, easy to clear up; Can be made of carbon steel, stainless steel, stainless steel mixer.
Fair Horizontal mixer/mixing machine use range:
putty powder equipment introduced foreign technology data, our professional and technical personnel to digest innovation design, so it is a new type of high efficient mixing equipment, widely used in chemical,
pharmaceutical, food, compound fertilizer, health care products, dyes, paints, rubber, building materials, refractory materials, rare earth, plastic, glass, thermal insulation mortar, putty powder, putty paste, Lacquer , pharmaceutical, chemicals, feed, refractory materials, ceramic materials and new materials, nuclear power industry such as solid - solid (i.e., powder and powder), solid-plasma (i.e., powder in rubber slurry) material mixing.
Technical data
|
Model |
FMZZ-100 |
FMZZ-200 |
FMZZ-300 |
FMZZ-500 |
FMZZ-1000 |
FAZZ-2000 |
FMZZ-3000 |
FMZZ-5000 |
|
Volume M3 |
0.5 |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
|
Single capacity KG |
300 |
650 |
1200 |
1800 |
2400 |
3000 |
3600 |
4800 |
|
Speed |
56 |
46 |
46 |
46 |
46 |
46 |
46 |
46 |
|
Power KW |
1.5KW |
2.2KW |
3KW |
5.5KW |
7.5KW |
11KW |
15KW |
18.5KW |
|
Weight kg |
900 |
2300 |
3500 |
4300 |
6500 |
7600 |
8200 |
11000 |
|
Length |
1390 |
1930 |
2235 |
2640 |
3160 |
3520 |
3425 |
4255 |
|
Wideth |
570 |
625 |
760 |
950 |
1150 |
1350 |
1480 |
1820 |
|
Height |
1020 |
1210 |
1450 |
1795 |
2005 |
2255 |
2370 |
2935
|
Fast mixing speed, high uniformity, no dead Angle,small residual.Can be fitted with screw hoist or bucket elevator according to the customer required,
Horizontal body is equipped with a moving door, easy to clear up; Can be made of carbon steel, stainless steel, stainless steel mixer.
Store the final products for a while, and ensure the whole production line continuous running.
With the pneumatic arch breaker device, ensure the discharging speed without blocking.
