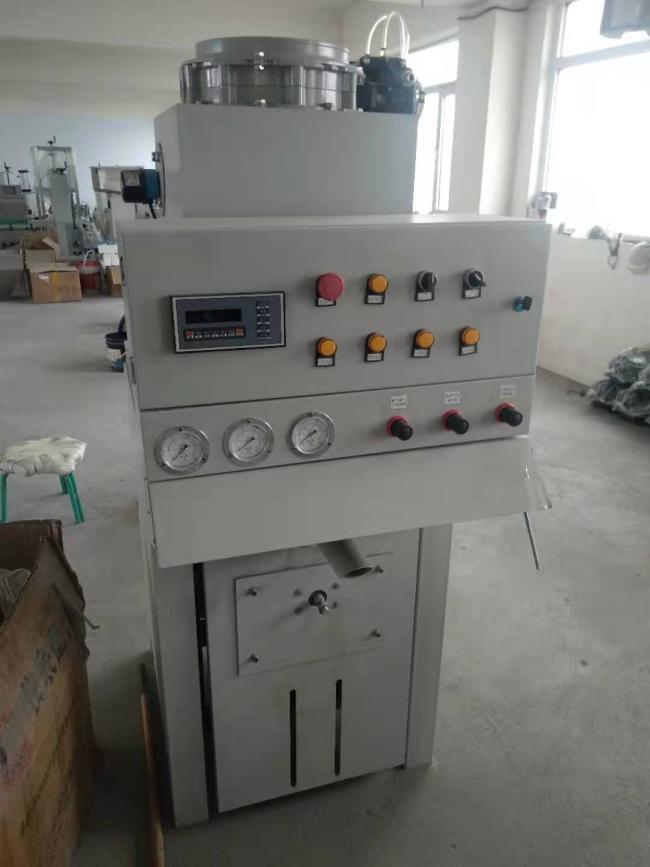

Valve Bags Sand Packing Machine / 25kg Bag Filling Machine For Cement
Valve Bags Sand Packing Machine / 25kg Bag Filling Machine For Cement
Fair sand packing introduction
Fair cement sand packing machine is a weighing packing machine for powder. It is designed for dry-mixed mortar, concrete, chemical engineering etc. The machine’s microcomputer system adopt industrial grade components and STM process.
Fair cement packing machine is developed based on the U-type horizontal spiral ribbon mixer which has been distributed to a lot of cities by us, after times of improvement. Since it is designed with three -layer successive spiral ribbons, it may have three layers of material flows; therefore, during the convention process, the materials maybe mixed rapidly and evenly in such a manner of penetrating through each other and accomplishing displacement.
|
Item |
FMP-01 valve bag packing machine |
||
|
Weighing Scope |
10~60kg, adjustable on panel. |
||
|
Discharge Port Qty. |
1 pic |
||
|
Capacity |
8-12 t/h |
||
|
Motor Power |
3kw |
||
|
Measuring accuracy |
±0.2-0.4％ |
||
|
Bag weight qualified rate |
>95% |
||
|
Weighing device |
Micro-computer |
||
|
Overall dimension(mm) |
1200*670*1200 |
||
|
Air Requirements |
0.4-0.8MPa ( dry compressed air) |
||
|
Application Environment |
Operating temperature |
0℃～50℃ |
|
|
|
Storage temperature |
-20℃～60℃ |
|
cement packing machine production working principle:
all raw materials from a hopper feeder, first put into cement and fiber additives, then stir 3 minutes, then add quartz sand and mix 5 minutes, the produced dry mortar can be lifted to storage bin and packaged.
Complete production line (feeding, mixing and packaging) for dry mortar, which will greatly improve production efficiency, save labor, reduce production costs, is a low investment, high efficiency, quick operation, high return benefit dry mortar production equipment.
Fair cement packing machine Main Features
1. The cement sand packing machine with dust collector can link to external filter, it also reduces dust in the environment and available to the protection of operator and environment.
2. Fast packing speed, accuracy stability
3. Accurate weighing, stable performance, simple operation, good seal, reasonable structure, durable, small volume, light weight, convenient adjustment and maintenance, mechanical and electrical integration, save power. The machine can be used in packing both the cement powder and particulate material.
You can be selected
Large angle screw feeding machine (bucket lifting machine).
High efficiency mixer.
Discharging machine.
Dry mortar screw lifting machine.
Dry mortar storage bin.
Fully automatic measuring and packing machine.
Dust collector (optional).
Electrical control cabinet and other components.
