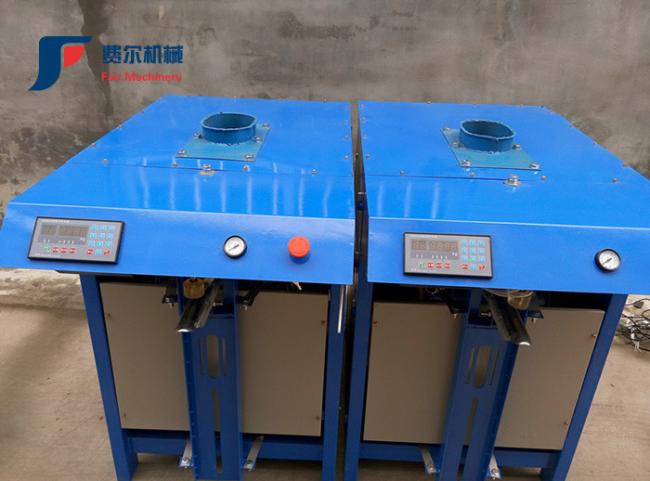

Valve Bags Gypsum Powder Valve Bag Packing Machine 20kg For Construction Material
Valve Bags Gypsum Powder Valve Bag Packing Machine 20kg For Construction Material
Main Features
1. The 10-50kg bags packing machine with dust collector can link to external filter, it also reduces dust in the environment and available to the protection of operator and environment.
2. Fast packing speed, accuracy stability
3. Accurate weighing, stable performance, simple operation, good seal, reasonable structure, durable, small volume, light weight, convenient adjustment and maintenance, mechanical and electrical integration, save power. The machine can be used in packing both the cement powder and particulate material.
Overview
|
Type: Filling Machine |
Condition: New |
Application: Chemical, Commodity, Food, Machinery & Hardware, dry mortar, other powder, granular materials |
|
Packaging Type: Bags, Pouch |
Packaging Material: dry mortar, other powder, granular materials |
Automatic Grade: Automatic |
|
Driven Type: Electric |
Voltage: 380V - 440V or customized |
Power: 3KW |
|
Place of Origin: Henan, China (Mainland) |
Brand Name: Fair Machinery |
Model Number: FMP-01 |
|
Dimension(L*W*H): 1170*770*1160mm |
Weight: 200kg |
Certification: CE ISO9001:2008 |
|
After-sales Service Provided: Engineers available to service machinery overseas |
Product name: valve port packing machine |
Color: Blue or customized |
|
Bag weight error: <0.1% |
Packing speed: 4 - 8s/bag |
Single bag weight: 15 - 50kg availiable |
|
Air Pressure: 0.5 - 0.8Mpa |
Function: Filling Sealing Forming |
Product Type: impeller or screw |
|
Automatic grade: automatic |
Single-mouth power: 3kw |
Operating temperature: 0℃~50℃ |
Packaging & Delivery
Packaging Detail
Packaging details: wooden case packing;
Delivery detail: Shipped in 7-10 working days after payment
Delivery Time
SHIPPING IN 5 WORKING DAYS AFTER RECEIVING YOUR PAYMENT
Product Description
Product Application
Our cement sand packing machine(valve bag packing machine), the improved model of the latest development ,different from other factory production. We improve its most precise measurement sensing system, changed the way of lifting force sensor, the industry generally used, to the pressure sensing mode, making the packing machine life and accuracy greatly improved, Bag weight error from the original error of ± 0.5-1kg reach ± 0.25kg. Filling mouth also made design changes, adding a "gas returning nozzle" design, in the filling process the bag excess gas can be discharged, so that the filling process more smoothly.
|
Item |
FMP-01 valve bag packing machine |
||
|
Weighing Scope |
10~60kg, adjustable on panel. |
||
|
Discharge Port Qty. |
1 pic |
||
|
Capacity |
8-12 t/h |
||
|
Motor Power |
3kw |
||
|
Measuring accuracy |
±0.2-0.4％ |
||
|
Bag weight qualified rate |
>95% |
||
|
Weighing device |
Micro-computer |
||
|
Overall dimension(mm) |
1200*670*1200 |
||
|
Air Requirements |
0.4-0.8MPa ( dry compressed air) |
||
|
Application Environment |
Operating temperature |
0℃～50℃ |
|
|
|
Storage temperature |
-20℃～60℃ |
|
Advantages of Fair valve bag packing machine
1. The cement sand packing machine with dust collector can link to external filter, it also reduces dust in the environment and available to the protection of operator and environment.
2. Fast packing speed, accuracy stability
3. Accurate weighing, stable performance, simple operation, good seal, reasonable structure, durable, small volume, light weight, convenient adjustment and maintenance, mechanical and electrical integration, save power. The machine can be used in packing both the cement powder and particulate material.
The cement sand packing machine is a weighing packing machine for powder. It is designed for dry-mixed mortar, concrete, chemical engineering etc. The machine’s microcomputer system adopt industrial grade components and STM process.
