BLDC Motor Stator Needle Winding Machine With Tooth Coil Tap Wire WIND-2-TSM



Application:

Tooth winding machine WIND-2-TSM produce Muti poles BLDC Stator winder needle winding for Stator

with 6 poles, 8 poles,9 poles, 10poles,12 poles, 14 poles,18 poles (Tailor made,Customized)

All types of BLDC motor, stepping motor, fan motor stator can be wound by WIND-2-TSM series with

different kind of winding method with arraying, with bridge wire placement, wire tapping covering stator

with different winding way.



Advantages:

1.Wide application for all type of BLDC stators with small and big size, heavy or light weight,

   Big or small wire size, arraying or no wire displacement needed, wire tapping or no taping

2. Wide wire gauge range from 0.08~1.2mm (AWG17~AWG39)

3. Delta PLC, Delta servo systemHuman-machine Interference and rich experience in 6,8,9,12 tooth

    can ensure the good performance of winding machine

Parameter:


Wire diameter:0.08 to 1.2mm

Stator ID: above 19mm

Stack height: 7 to 90mm

Air pressure:5~7kg/square centi-meter

Power:AC380V 50/60Hz

Weight: about 500kgs

Dimension: 1800(L)x1150(W)x1600(H)mm

The automatic brushless stator winding machine series WIND-TSM is suitable for the winding of various

types of brushless motor coils. The enameled wire is directly wound on the coil core. Compared with the

traditional method of stator coil winding and windings embedding method, it saves the cost of the

enameled wire and increases the number of coils (related to electric motor slot filling rate).


The magnetic flux increases the power of the motor. This machine WIND-TSM series can automatically

complete the winding, indexing, arraying, cutting and other processes. The operator only needs to take

the work of picking and placing the stator, which reduces the labor intensity of the operator and achieves

automation. In addition, the machine has a significant functional feature. The copper wire nozzles are

moving according to the setting parameter, so that the wound wire package is compact, neat, excellent

laying and nice looking.

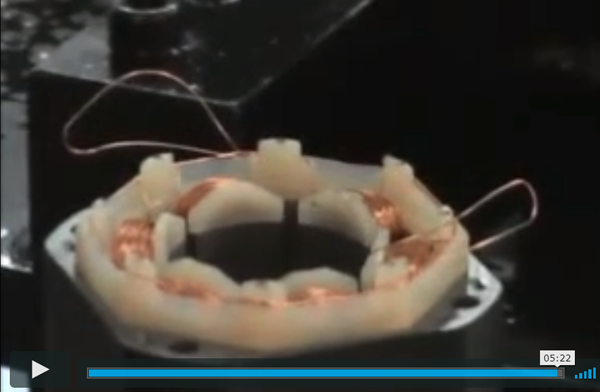

Please click below picture to view video
