Armature Paper Insertion Machine For Starter Armature Shapes S Slots Insulation WIND-SZ-1

(1) Application

This paper inserting machine WIND-SZ-1 automatic heating, shaping, cutting off paper and

insertion,automatic indexing

The armature slot insulation forming and insertion machine is designed for the automatic forming of S,O

shaped slot insulation and its insertion into the starter armature slots.

Raw material is a roll of insulation paper with the appropriate width.

The paper inserting machine carry the paper, guiding,heating, forming, feeding and cutting-off

mechanisms

(2) Competitive Advantages

Efficiency                   1 second per slot

Save labor cost           comparing to paper forming and manual inserting production process

The edge folding length and insulation paper length can be adjusted

(3) Parameter

Insulation material thickness: 0.18~0.2mm

Armature stack height: Max 100mm

Power Supply: 220V±10% 50Hz

Air source Pressure: 0.5~0.7Mpa

Heating temperater: 70~100℃

Weight: Around 700KGS

Dimension: 1200*650*1500mm

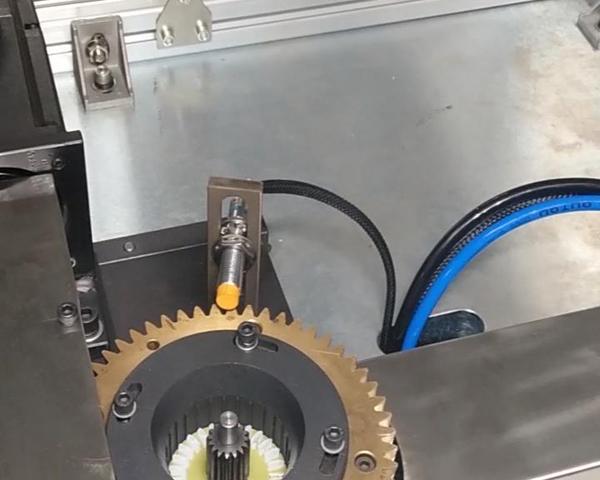

Please click below photo to view video
