Automatic Armature Lap AC Motor Winding Machine For Universal DC And AC Electric Motors
Automatic Armature Lap Winding For Universal DC And AC Electric Motors WIND-STR
Application:
This armature winder WIND-STR is a fast flyer coil winding machine for motor mass production
manufacturing of hook type tang type commutator armature,Mixer,Vacuum cleaners, Hammers,Power
tool...
Competitive Advantages:
|
Crazy Fast |
In normal condition can wind at speed 1000~1500rpm, get one piece wound
armature in 23s
|
|
Easy Operation |
The winding parameter can be setted on touch screen for different armatures
|
|
Slot and Hooks no. |
12 slots, 24 hook, 12 slots,12 hooks
|
Parameter Data:
Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm
HS code: 8479811000
Main Parts:
Japan Mitsubishi PLC
Japan Mitsubishi servo motor control system
5.7’’ colorful touch screen system
SMC Cylinder

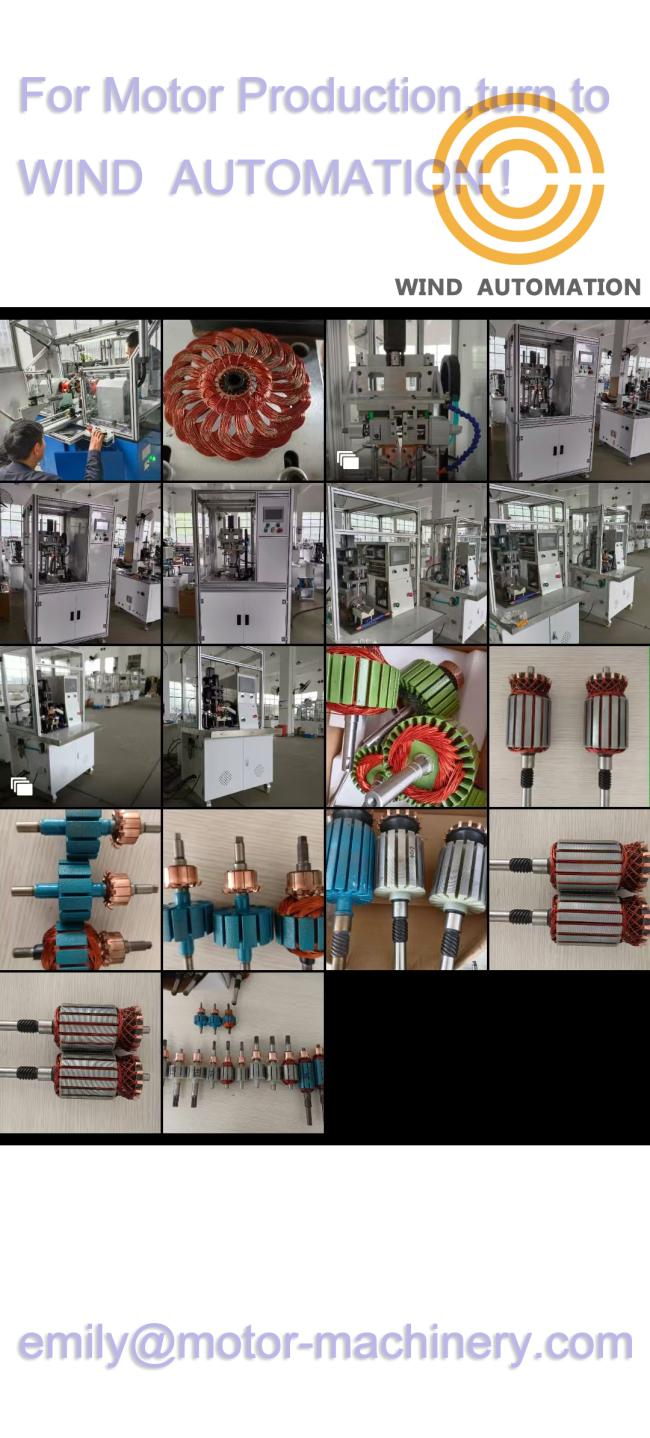

Below photo shows how an armature winder was born:
