Solar Steering Motor Armature Flyer Winder Rotor Lap Winding Machine WIND-2A-TD



(1) Application

This is a double-fly fork winding machine specially used for producing hook type commutator rotors.

This winder is sutiable for high-speed winding of medium and large wire diameter rotors.

This machine is windely applied to the winding of DC and series motor rotors.




(2) Competitive Advantages

1. Suitable for winding kinds of special winding design armature

    such as the solar steering motor showed in photo

2. For armature / rotor with high slot filling rate

3. For armature double flyer winding machine tensioner, China local motor manufacturers usually use hysteresis tensioner or electrical tensioner

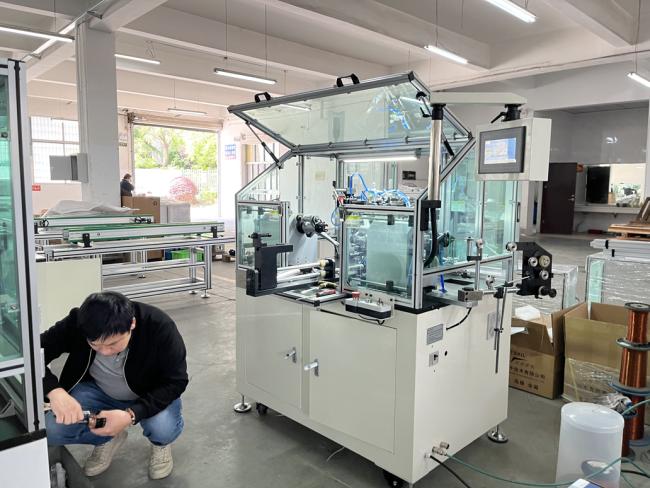

    according to wire diameter, winder with hysteresis tension which showed in below armature winding machine photo,





(3) Parameter Data





Sunshine Facing Motor Armature Winding Machine Main Parts:

Mitsubishi Program Controller
Delta Three-set Servo Control System
Embedded Touch Screen Human-computer Interface
Airtac Pneumatic System and Air Source Treatment
South Korea and Japan Main Electrical Elements
Magnetic Hysteresis Tension Control Unit
Taiwan HIWIN Linear Guide Rail
