White Electrical AC Motor Winding Machine Four Station Small Rotor Winder
Four Station Small Rotor Winder Electrical Motor Armature Winding Machine WIND-ODD-4
Description:
This kind of Two Station Armature Winding Machine is used for the small armature with 3~7 slots.
There are 4 working stations, 4 armatures can be winded at same time. Machine is controlled by PLC.
Quick Detail:
Technical parameter:
| Machine main technical parameter | |
| Power source | 220VAC ±10% / 50Hz |
| Main motor power | ≤1.5kW |
| Max rotation speed of main spindle | 3000rpm |
| No. of station | 4 stations |
| Wire diameter range | 0.07mm～0.27mm |
| Armature slots range | 3 slots ,5 slots or 7slots |
| Armature O.D. range | Φ30mm～Φ50mm |
| Stack length range | 20mm～40mm |
| Armature spindle range | Φ5.5mm |
| Air source | 0.4Mpa~0.6Mpa |
| Working temperature | 45℃ |
| Store temperature | 50℃ |
| Working humidity | <65% |
| Store humidity | <45% |
Information needed for Armature Winding Machine inquiry:
1. Rotor lamination drawing
2. Rotor assemble drawing
3. Rotor stack drawing
4. Rotor winding diagram drawing: with rotor wire diameter and turn number
5. Commutator drawing
6. Required productivity
7. Other technical requirement
If possible, it will be better if customer can send us samples.

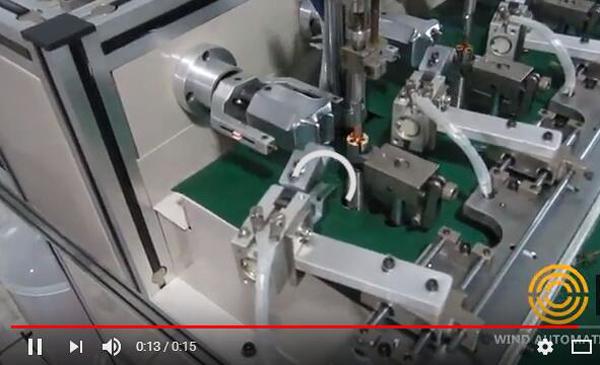

Please click below picture to view four station armature flyer winder video
