135 Pitch Excavator Bolt On Rubber Track Pads 400mm Length
Price:
Negotiable
MOQ:
100 pieces
Delivery Time:
5-7 days
Brand:
PY
Product Description

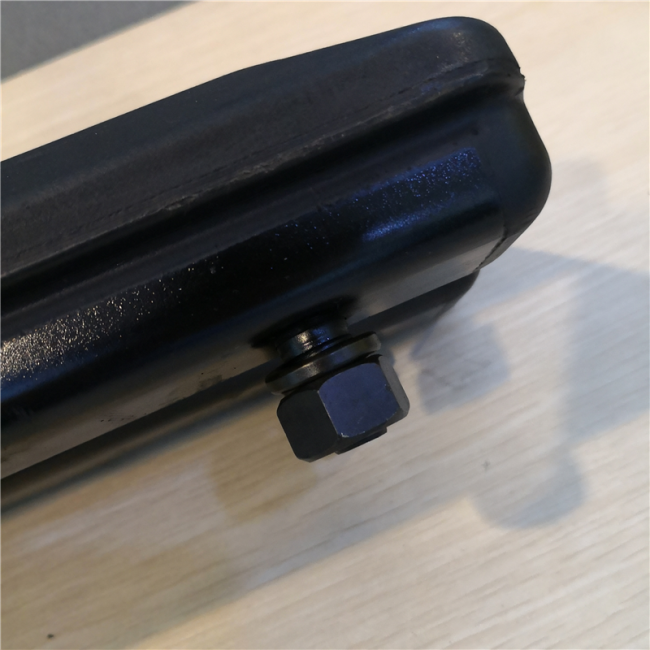

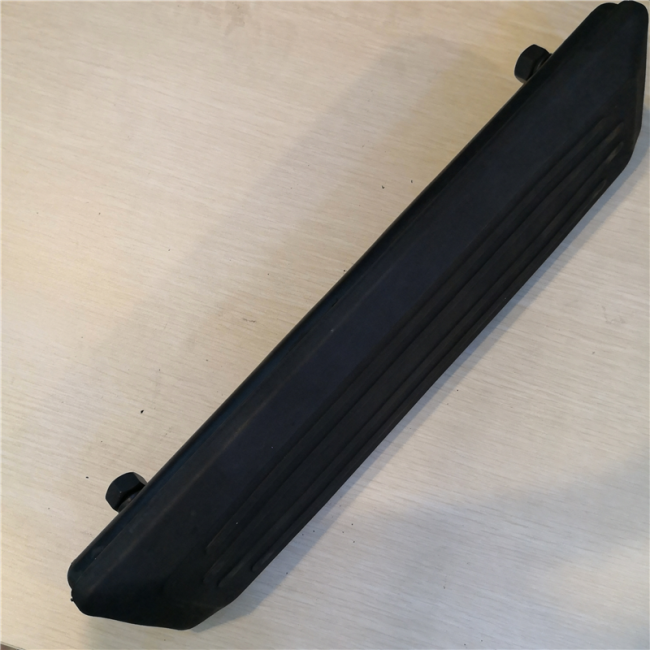

400mm Long Rubber Track Pads for Excavators
Product Description
1. Our raw material, first-class natural rubber is imported from Thailand. It can absord the vibration and noise from construction and protect the undercarriage part of the machine, thus provides the operator with a better working environment.
2. Split type design. When the rubber pad is worn out, we only need to change the rubber pad. The steel board is strong and need no maintaince, saving money for steel board every time when a new one is needed.
3. Chamfer design, enclosed design and back lock design. All special designs help to decrease the risk of foreign body cutting into rubber or damaging rubber and increase the serving life.
4. We can offer almost every type of track pad that is currently active on market. So if you don't see what you need in our description or in the picture, contact us directly to get professional service.
2. Split type design. When the rubber pad is worn out, we only need to change the rubber pad. The steel board is strong and need no maintaince, saving money for steel board every time when a new one is needed.
3. Chamfer design, enclosed design and back lock design. All special designs help to decrease the risk of foreign body cutting into rubber or damaging rubber and increase the serving life.
4. We can offer almost every type of track pad that is currently active on market. So if you don't see what you need in our description or in the picture, contact us directly to get professional service.
Other sizes
Bolt-on

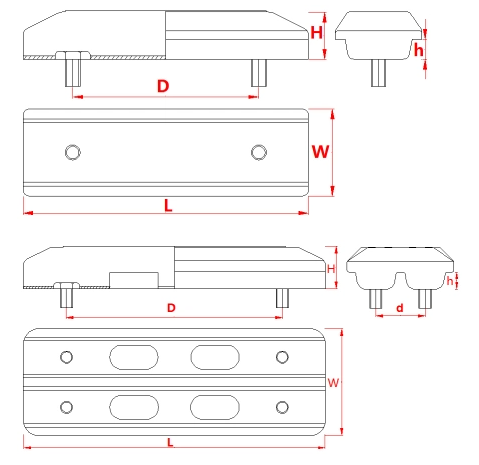

| Type | Pitch | h | D | d | Bolt | L | W | H | Weight |
| 230BA | 90 | 15 | 150 | 0 | M12 | 230 | 60 | 31 | 0.800 |
| 230B | 101 | 16 | 150 | 0 | M12 | 230 | 70 | 39 | 0.900 |
| 250B | 101 | 16 | 200 | 0 | M12 | 250 | 70 | 39 | 0.925 |
| 300B | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
| 300BA | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
| 350B | 101 | 16 | 200 | 0 | M12 | 350 | 70 | 39 | 1.230 |
| 350BA | 101 | 16 | 250 | 0 | M12 | 350 | 70 | 39 | 1.230 |
| 350BD | 135 | 14 | 250 | 46 | M12 | 350 | 106 | 40 | 2.035 |
| 350BL | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
| 350BR | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
| 380B | 135 | 14 | 300 | 46 | M12 | 380 | 106 | 40 | 2.330 |
| 400B | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.180 |
| 400BLR | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.190 |
| 400BW | 140 | 18 | 300 | 52 | M14 | 400 | 123 | 65 | 4.000 |
| 400BH | 140 | 18 | 350 | 52 | M14 | 400 | 123 | 45 | 3.000 |
| 450BE | 135 | 14 | 350 | 46 | M12 | 450 | 106 | 40 | 2.450 |
| 450B | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
| 450BLR | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
| 500B | 171 | 20 | 400 | 60 | M16 | 500 | 137 | 57 | 4.580 |
| 500BA | 175 | 26 | 400 | 57 | M16 | 500 | 126 | 59 | 4.510 |
| 600B | 190 | 26 | 400 | 69 | M20 | 600 | 136 | 71 | 7.500 |
| 260BM | 18 | 190 | 53 | M12 | 260 | 120 | 50 | ||
| 260B | 18 | 200 | 54 | M14 | 260 | 112 | 48 | ||
| 260BK | 18 | 200 | 57 | M14 | 260 | 120 | 48 | ||
| 300BM | 18 | 227 | 57 | M12 | 300 | 120 | 50 | ||
| 300BK | 18 | 220 | 57 | M14 | 300 | 130 | 55 | ||
| 350BK | 155 | 25 | 270 | 60 | M14 | 350 | 135 | 60 | 4.000 |
| 400BK | 25 | 300 | 60 | M14 | 400 | 135 | 60 | ||
| 450BK | 31 | 350 | 80 | M14 | 450 | 170 | 76 | ||
| 200T | 0 | 160 | 0 | M14 | 200 | 90 | 30 | ||
| 305BP | 0 | 177.8 | 0 | M16 | 305 | 114 | 32 | ||
| 355BP | 0 | 237.5 | 0 | 5/8" | 355 | 132 | 32 | ||
| 455BP | 0 | 305 | 0 | 3/4" | 455 | 132 | 32 | ||
| 300-2 | 155 | 18 | 220 | 0 | M14 | 300 | 135 | 50 | 2.400 |
| 300-4 | 155 | 18 | 220 | 45 | M12 | 300 | 135 | 50 | 2.400 |
| 320-2 | 155 | 18 | 220 | 0 | M14 | 320 | 135 | 50 | 2.700 |
| 320-4 | 155 | 18 | 220 | 45 | M12 | 320 | 135 | 50 | 2.700 |
Packaging & Shipping
1. Delivery terms:by sea/ by air
2. Delivery times:7-15 Days
3. Payment terms:FOB/EXW/CIF
