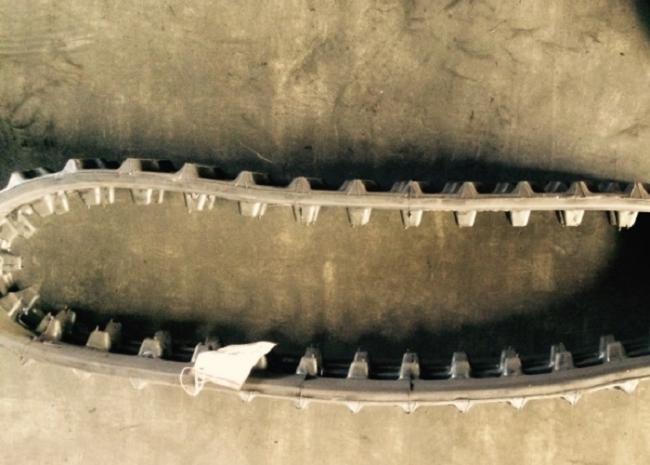

PC02 Mini Excavator Rubber Track Lightweight Mechnical 150mm Width
Product information:

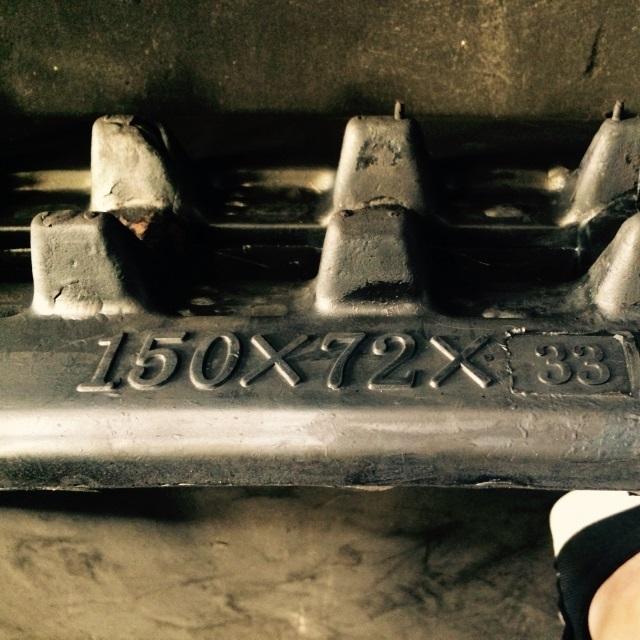

Size:150mm width x 72mm pitch x33links ( link can be customized )
Total length: pitch (72)x links (33)=2376mm
Weight: 18.16kg/pc
Warranty: one year guarantee for normal usage
Certificate:DOT, CCC, ISO Certificate
Application:
Rubber track with size 150mm wide, 72mm pitch and 33 links, can be applied on the mini construction machinery as follow:
| Excavator | Model |
| K005 / KH005 | |
| PC02 / PC02.1A / PC02.A | |
| ME05 / MM05 | |
| H05 | |
| HS400 | |
| EX5.2 | |
| ME05 | |
| H05 | |
| H05 | |
| MD550E / MD550EA | |
| 700T |

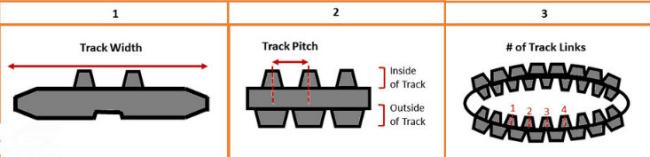

Measurement guide of rubber tracks:
Features:
1. Light mechnical weight,small shanking, low noise, large traction
2. Color: Black or Grey(no-marking)
3. Certificate: ISO9001:2000
4. Exported country: Europe, North America, South Asia, South America, Germany, Japan, Colombia, Russia, Brazil...
5. Application: Mini excavators,Agriculture machines, Carrier vehicles, Construction Machines, Cranes, Combine harvesters...

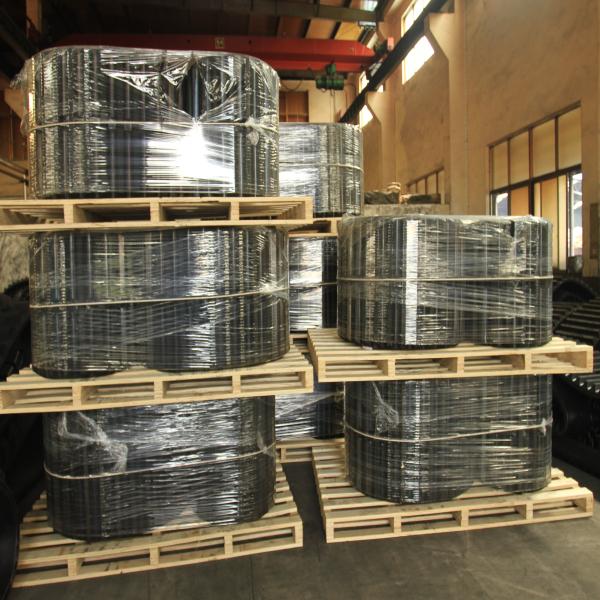

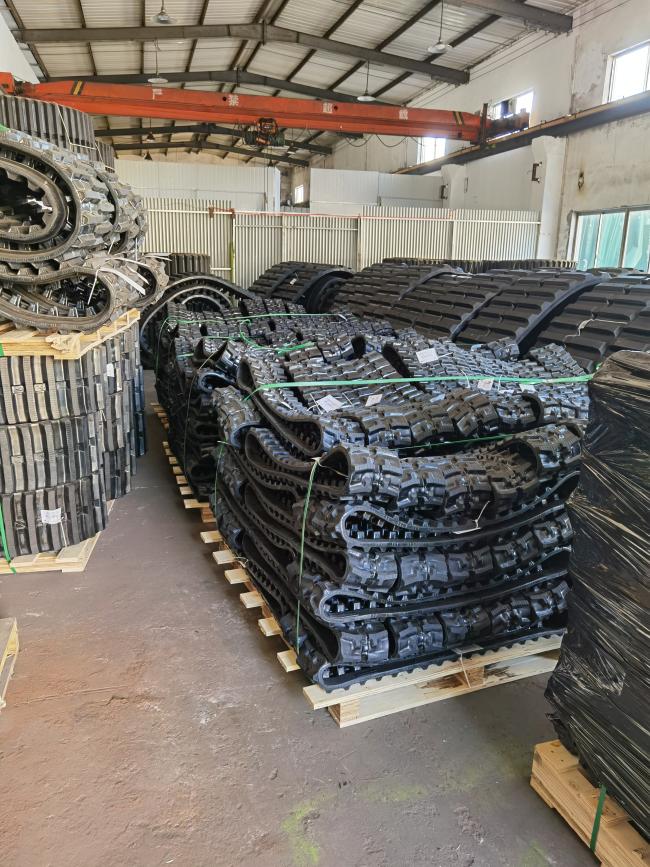

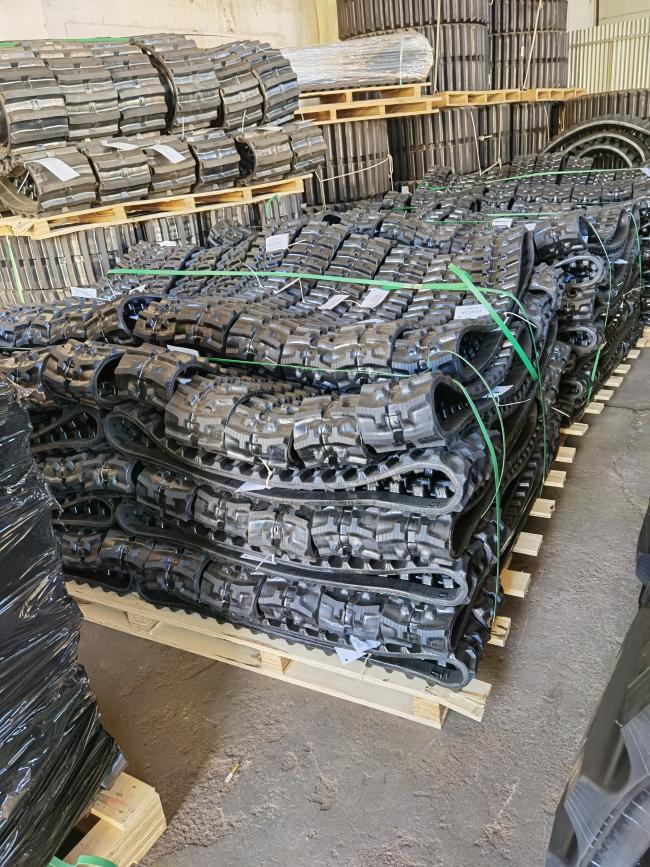

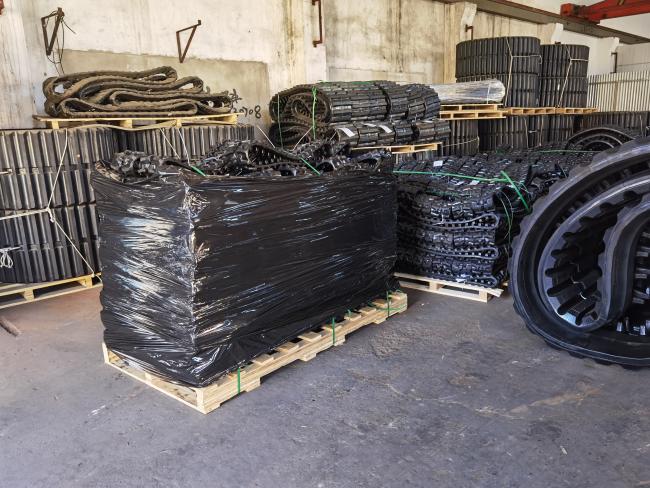

Packing:
Parameters:
Please noted that, the parameter just show the part of our size range, if you cannot find your size, please kindly inform us by email or other ways, we will customize for you.
| Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links | Width*Pitch length(mm) | Number of Links |
| 130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW | 68-92 |
| 150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 | 68-76 |
| 150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K | 74 |
| 170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 | 52-55 |
| 180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 | 42-56 |
| 180*72 | 30-58 | 300*53K | 80-84 | Y400*142 | 36-37 |
| 180*72K | 30-37 | 300*55 | 70-86 | 400*144 | 36-41 |
| B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K | 36-41 |
| B180*72A | 30-51 | 300*71K | 72-55 | 420*100 | 50-58 |
| H180*72 | 30-50 | 300*109N | 25-42 | 450*71 | 76-88 |
| 190*60 | 30-40 | K300*109 | 37-41 | DW450*71 | 76-88 |
| 190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 | 76-84 |
| 200*72 | 34-47 | B300*84 | 78-52 | 450*76 | 80-84 |
| 200-*72K | 37-47 | T300*86K | 48-52 | 450*81N | 72-80 |
| 230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W | 72-78 |
| 230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 | 72-80 |
| 230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 | 72-74 |
| 230*72K | 42-56 | B320*86 | 49-52 | B450*84 | 53-56 |
| 230*96 | 30-48 | 320*90 | 52-56 | B450*86 | 52-55 |
| 230*101 | 30-36 | 320*100 | 38-54 | 450*90 | 58-76 |
| 250*47K | 84 | 320*100W | 37-65 | KU450*90 | 58-76 |
| 250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K | 48-65 |
| 250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 | 38 |
| 250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W | 74 |
| B250*72 | 34-60 | B350*55K | 77-98 | 500*90 | 76-82 |
| B250*72B | 42-58 | 350*56 | 80-86 | 500-92 | 72-84 |
| E250*72 | 37-58 | 350*75.5K | 74 | 500*92W | 78-84 |
| 250*96 | 35-38 | 350*90 | 42-56 | 500*100 | 71 |
| 250*109 | 35-38 | 350*100 | 46-60 | K500*146 | 35 |
| 260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 | 76-80 |
| Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 | 56-64 |
| 260*109 | 35-39 | Y370*107K | 39-41 | 700*100 | 80-98 |
| 280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 | 66 |
| Y280*106K | 35-42 | 400*72.5W | 68-92 | 800*125 | 80 |
| 300*52.5N | 72-98 | Y400*72.5K | 72-74 | ||
| 300*52.5W | 72-92 | KB400*72.5K | 68-76 |

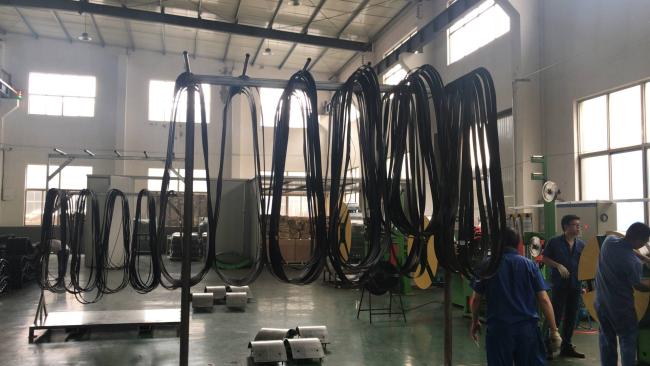

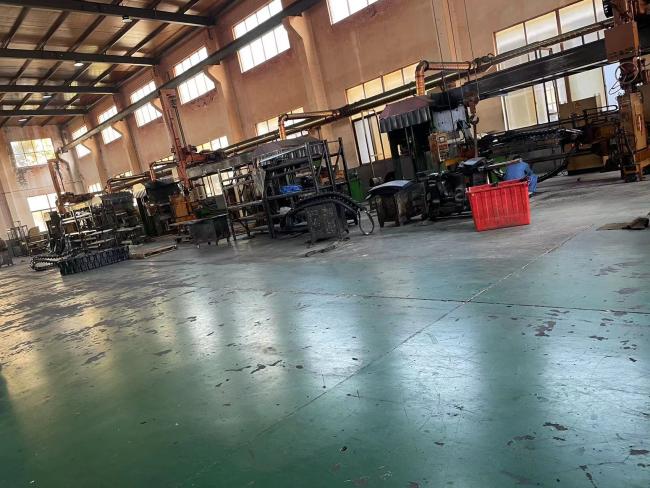

Company
Shanghai Puyi Industrial Co., Ltd is a speicialized manufacturer to produce and sell rubber tracks and rubber pads who has top production equipment and advanced test facilities so that we can produce most varieties of tracks with endless steel cord. We are also one of the departments that draft the national standard rubber track.
Our products are exports to most of the developed countries in Europe, America, Oceania, and Asia. We are awarded ISO9001-2000 certificate of national quality assurance from UK and Hi-Tech Enterprise from Shanghai Tech-Committee. We try our best to meet all requirements from our customiers by our innovative products and unique service.
Our main products are mini-excavator track, dumper and skid steer loader track, agricultural track, pavior track, snow mobile track and other special track.
We warmly welcome your cooperation!
