Small Wireless Electromagnetic Lock 330LBS Holding Force Waterproof Magnetic Lock
Small Electric Lock for Access Control System 150KG or 330LBS Holding Force
Waterproof Magnetic lock with 150KG holding force for single door
Specification
| Products Parameter | Magnetic Lock Parameter Description |
| Model | EM150A |
| Lock Size : | 168Lx38Wx23H(mm) |

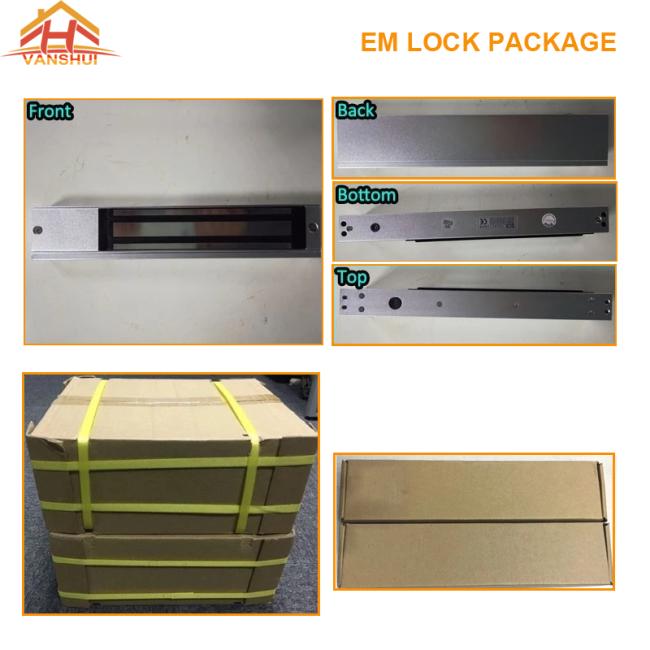

| Package: | 230Lx80Wx30H(mm) |
| Armature plate: | 190Lx190Lx45Wx11H(mm) |
| Holding Force | 150kg (330Lbs) |
| Input Voltage : | 12VDC or 24V |
| Suitable for door: | Wooden door , Glass door(no frame door) ,Metal door , Fireproof door |
| Opening Mode: | Swinging door 90 degree |
| Signal Output : | Lock signal Status NO/NC/COM/+/- |
| Feature: | Power to lock or Timer delay, With LED |
| Environment |
Operation temperature: -20°C ~ 55°C normal atmospheric temperature+8°C |
| Bracket selection (optional) |
No frame door can choose U type, Z type and L type |
| Weight | 1KGS |

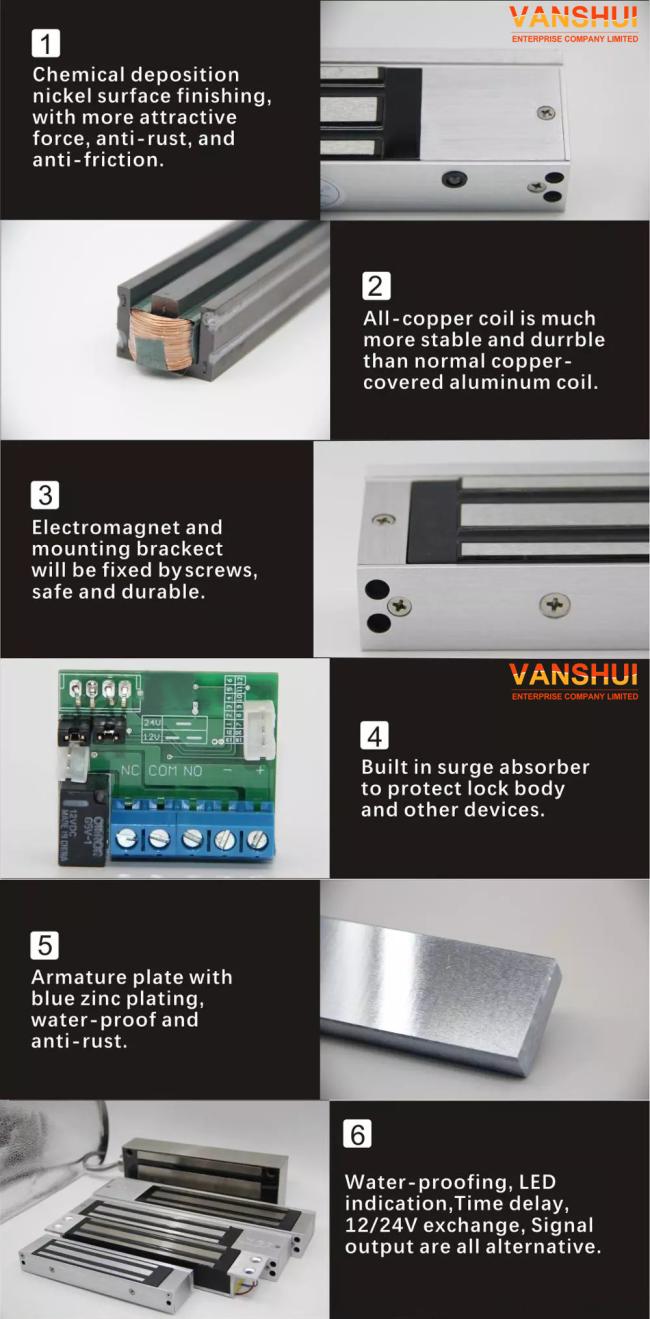

Features
- Collinear Load Test 150KGS 330LBS.
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12VDC when finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force, Dual Isolative Housing.
- CE Certificate by European Union, MA Certificate by China Public Security Office
EM Lock Types Fail Safe (Power to lock)
| Magnetic Lock Model | Holding Force | Suitable for door |
| EM150 | 150kg(330Lbs) | Wooden door , Glass door (no frame door) ,Metal door , Fireproof door |
| EM270 | 270kg (600Lbs) | |
| EM300 | 300kg(660Lbs) |

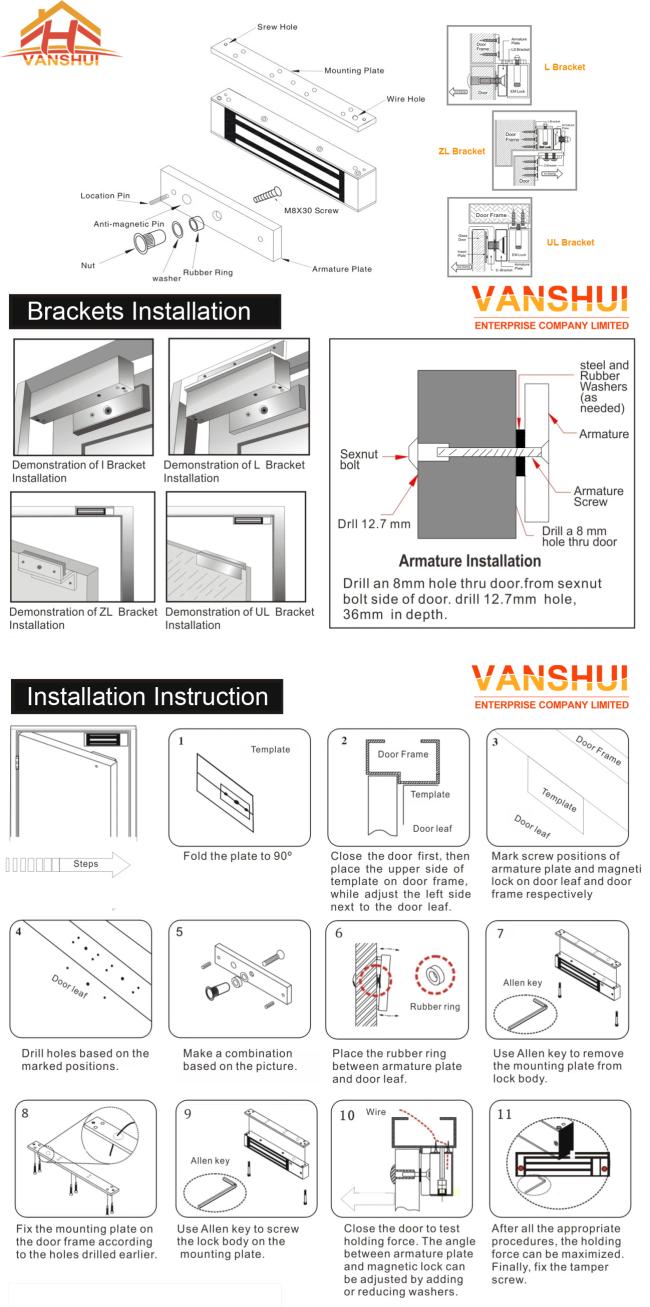

Bracket (Optional)
| Bracket Type | Description |
| EMJ150L | L type bracket for EM150 |
| EMJ150Z | Z type bracket for EM150 |
| EMJ150U | U type bracket for EM150 |
