The technical parameter of 34 heads high speed led tube machine
| Name | High speed Pick and place machine |
| Model | HT-F7S |
| Total weight: | 1700kg |
| Dimension | 2700*2300*1550mm |
| PCB length width | Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and group placing |
| No. Of camera | 5 sets of digital camera |
| Mounting precision | ±0.02mm |
| Mounting height | ≤5mm |
| Power consumption | 6kw |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| No. Of feeders station | 68 PCS |
| No. Of head | 34PCS |
| Feeding way | Electric feeder with double motor |
| Software | R&D by ETON |
The main features of 34 heads high speed led tube machine
Higher mounting speed reach 180000CPH with 34 heads and 68 feeders station
Adopt magnetic linear motor and servo motor, it can ensure higher mounting speed and mounting precision
Total 5 cameras, achieve vision alignment and mark correction
The feeding way is electric feeder with double motor

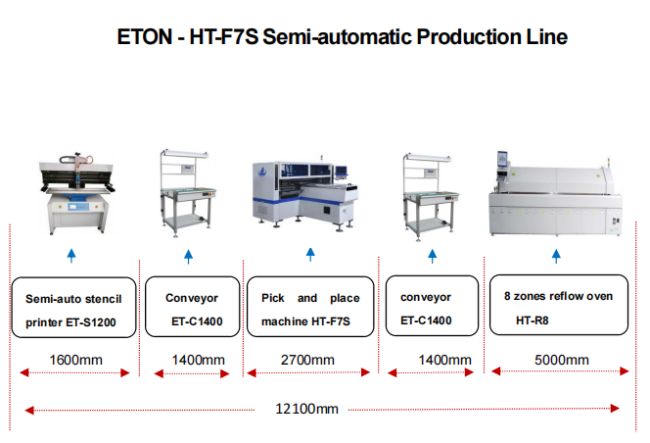

Applications and Production line
Apply to led tube, led strip(0.5M ,1 M, 1.2M), LED display, panel light and other Linear products.
Market and Customer
Foreign Market: South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.
Foreign Customer: RK, UNISTAR, FIEM, POLYCAB, SURYA, CALCOM, KONKA etc.
Domestic market and customer:More than 80 percent of LED light factories in China are our partners,our clients include NVC, TCL, MLS, OPPLE etc.
FAQ
1. Which language is the software? Do you provide software updates?
English or Chinese. Free to upgrade software for lifetime.
2. How about the warranty?
We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within thewarranty period.
3. it is supported to customize?
Of course. All of our machines can be customized.
4. This is the first time I use this kind of machine, is it easy to operate?
Yes. There are English manual and guide video that show you how to use machine.
We also have oversea engineers who can provide timely service door to do
