Lead Free SMT Reflow Oven 1500mm/Min LED Reflow Soldering Machine
reflow soldering oven infrared reflow oven pcb oven smt reflow soldering oven reflow oven temperature profile benchtop reflow oven smt reflow soldering led reflow soldering machine
Details of SMT Reflow Oven
Reflow oven/soldering is one of the three main processes in SMT mount process. Reflow soldering is mainly used to weld the installed components of the circuit board, by heating the solder paste to melt the solder paste so that the patch components and the PCB pad fusion welding together, and then through the reflow of the cooling solder paste to cool the element and the pad curing together.
Unique advanced heating system with long life
1.Using the world-leading small circulation technology, the whole furnace is divided into independent communities. The temperature curve of PCB welding is very high, which is very suitable for the welding of components with small space window in lead-free process.
2.Independent upper and lower heating modules, independent hot air circulation, double welding zone or three welding zone setting.
3.Modular design is adopted in each temperature zone, high temperature long axis hot air motor and high thermal nickel chromium heating wire. Take about 20 minutes from room temperature to constant temperature.
Cooling and convenient flux recovery system
1.The forced cooling system adopts a two-stage forced air cooling temperature zone to meet the lead-free process; Smooth cooling curve, no abrupt change, full heat exchange, maximum cooling rate up to -5℃/S.
2.Flux collection system, can keep the furnace clean for a long time, exhaust gas emission more environmental protection. The gas separated by nitrogen furnace can be recycled to save nitrogen.
Specification of smt reflow oven
| PCB limits height | 25mm | |
| Transmission direction | L→R (R→L) is optional | |
| Transmittal mode | Mesh belt + chain + guide x2 | |
| Conveyance belt height | 900±20MM | |
| PCB transport speed | 0～1.8m/min | |
| PCB temperature differential deviation | ±2℃ | |
| Temperature control accuracy | ±1-2℃(Static state) | |
| Temperature control range | Room temperature ~ 300℃ can be set | |
| Applicable solder type | Lead-free solder/Have lead solder | |
| The temperature control mode | PID+SSR | |
| Type of component used | CSP, BGA, μBGA, 0201CHIP and other single/double panel | |
| Power outage protection | UPS and Delayed Shutdowns | |
| Power supply | 3Φ,380V,50HZ | |
| Initial power | 68KW | |
| Operating power | 16KW | |
| Heating up time | Approx.20min | |
| Dimensions |
L5000*1500*1450MM
|
|
| Net weight | 2000kg | |

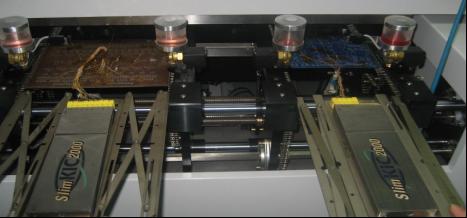

| Temperature curve system | Three-channel on-line curve test, intelligent analysis software, display temperature and speed. |

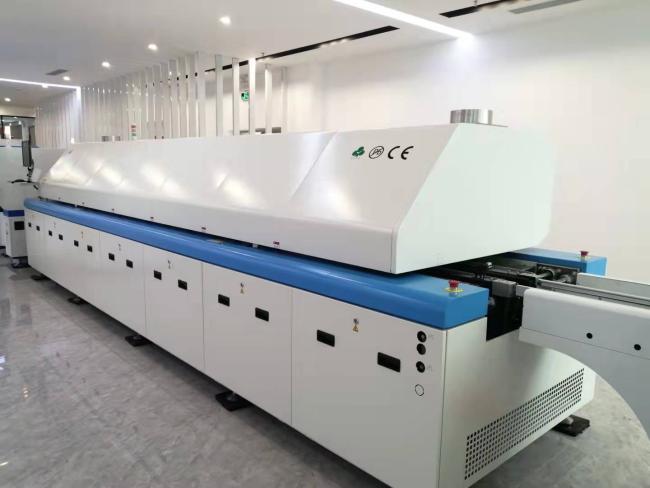

SMT reflow oven machine

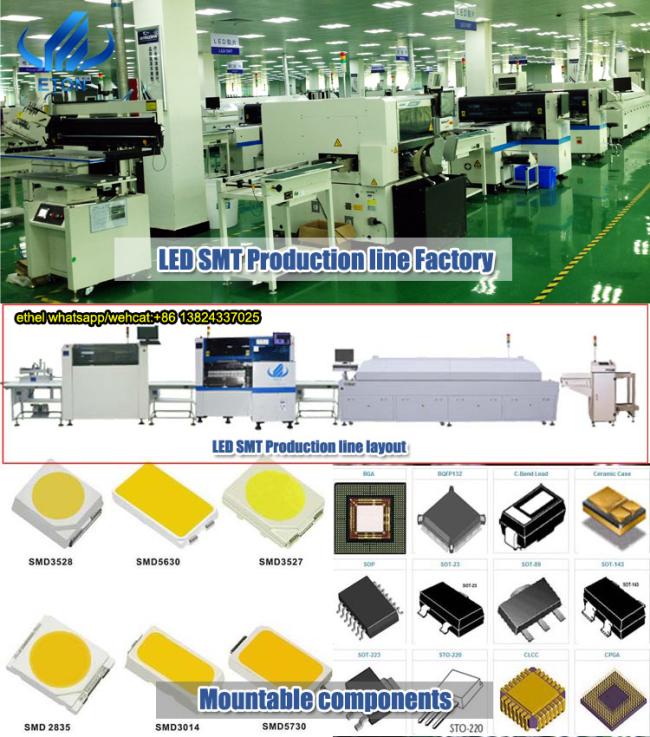

Application :SMT line solution
FAQ
1.Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2.Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3.What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5.Why choose us?
Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
