DOB Bulbs And Spot Light SMT Making Machine With 45000CPH And 12 Heads
Spot light and panel light making assembly machine with double module 90000CPH
The main parameter
| Dimension: 3150*2250*1650mm | ||||
| Total Weight:2500kg | ||||
| PCB | ||||
| PCB Thickness | PCB Length Width | PCB Clamping | Mounting Mode | |
| 0.5-5mm |
Max:1200*300mm Min:100*100mm |
Adjustable pressure pneumatic |
Group picking and separate placing separate picking and separate placing |
|
| Camera | 4 sets of imported camera | Mounting Precision | ||
|
Vision for the flight identification, MARK correction |
±0.04mm | |||
| Mounting Speed | Mounting Height | Components |
Electrical control Motion control card module 2 set |
|
| 90000 CPH | <15mm |
LED , capacitors, resistors, IC,shaped components, etc. |
Independent R&D by ETON | |
| No. of nozzles | Components Space | No. of Feeders Station | X,Y,Z Axis Drive way | |
| 24 PCS | 0.2mm | 48 PCS | High-end magnetic linear motor + Servo motor | |
| Power | Operating Environment | Transmission Speed | Air supply | |
| 380AC 50HZ | 23℃±3℃ | ＞1000mm/sec | 0.4-0.6mpa (4-6kgf/cm2)300N/min | |
| Conveyor transmission | Transmission Direction | Transmission Mode | Feeding way | |
|
Max length 1200 mm |
Both direction | Auto online drive | Electric feeder with double motor | |

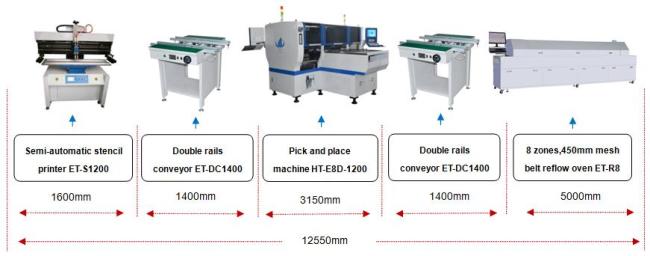

The prodction line solution
The applications
HT-E8D is the multifunctional led light SMT pick and place machine, has the wide range of applications: led bulbs, DOB bulbs, tube light, strip light, street light, panel light, down light, electric boards, power driver, led display etc.
