0.5m, 1m, LED Felxible Strip Making Mounter 180000CHP 5 Sets Digital Camera Pick And Place Machina
Details
- Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
- Calibration automatically , high precision , available for RGB .
- Exclusive patent technology: Group to take and group to mount.
- ETON tech adjustable placement head: component picking position can be adjusted according to PCB pad pitch , min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor , capacitor , bridge rectifier etc . wide component range
-
Computer control system: The SMT placement machine is generally equipped with computer monitor and mouse. It supports English languages. It enables visual Windows 7 system in Chinese and programming and PCB file import system.because of the humanized operating.
Technical parameter
| Model | F7S |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB size(L* W) | 1200*330mm Min；100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows 7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 5 sets Digital camera(Digital camera) |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station | 68PCS |
| No.of nozzles | 34PCS |
| Power | 380AC 50HZ |
| Operating environment | 23℃±3℃ |

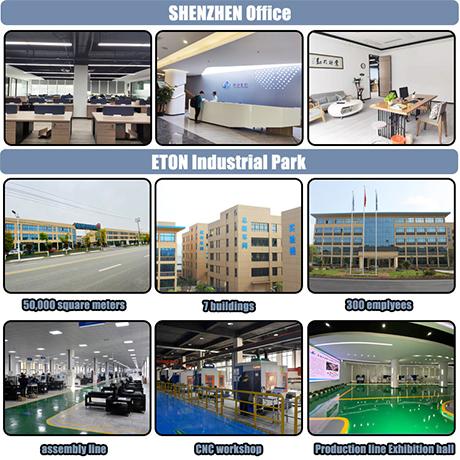

Our company was established in 2011 with over 10years experiences in high-speed pick and place machine. We are the largest high -tech manufacturer in China with strong capability of design ,R&D, manufacture, sales&services. “High efficiency””High quality”and “High Stability ” are he core technology of ETON. We got 9 invention Patents, 112 practical patents,12 software copyrights. Moreover, ETON has invented the fastest automatic pick and place machine with speed 250000CPH. We got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries.We expanded our plant and built a new bigger industrial park in Jiangxi Province.
Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
After sale
1. Arrange engineers to come to the factory to install, debug and teach free of charge;
2. One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3. Every year there is an opportunity for free machine maintenance
4. Visit customers regularly to understand the usage of the machine and collect customer feedback.
FAQ
Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
oes the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
