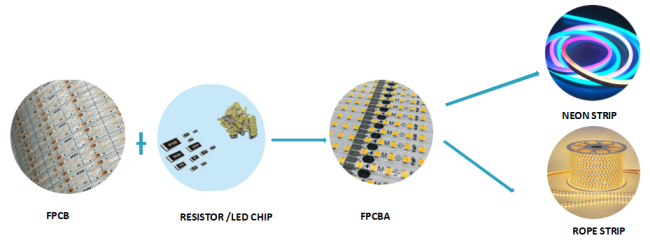

LED flexible strip light process:
Led flexible strip light production line-5m(0.5m+...+0.5m=5m) strip light
Semi-auto stencil printer→1.4m conveyor→high speed pick and place machine→8 zones reflow oven→belt conveyor→strip light testing jig→strip auto edge cutter→strip soldering machine→auto separation machine→strip reel machine

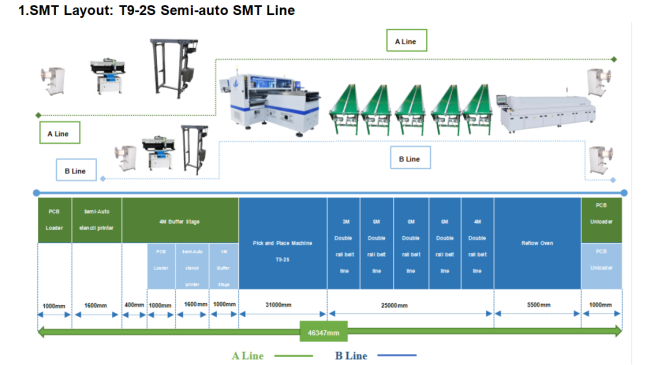

Led flexible strip light production line-25m roll-to-roll strip light with high waterproof
PCB Loader→Semi-auto stencil printer→1.6m buffer→high-speed pick and place machine→25mbelt conveyor→8 zones reflow oven→testing line→splitting line→extrusion line

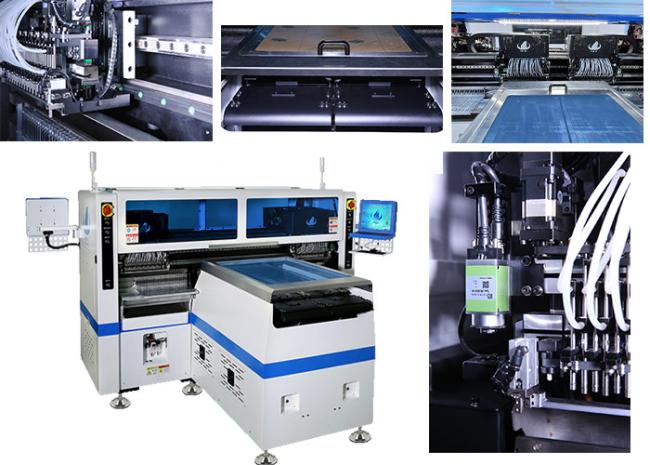

The advantage of T9-2S chip mounter
1.On-line operation.
2.High-end magnetic linear motor+servo motor ,higher precise!
3.Group packing ang group placing principle,the production quantity can up to 500000CPH.Fastest!
4.With 10 sets digital camera,ensure thr higher mouting precision.
5.Suitable for all kinds of LED strip light product mounting. Like univesial strip, RGB strip light, neon strip light.

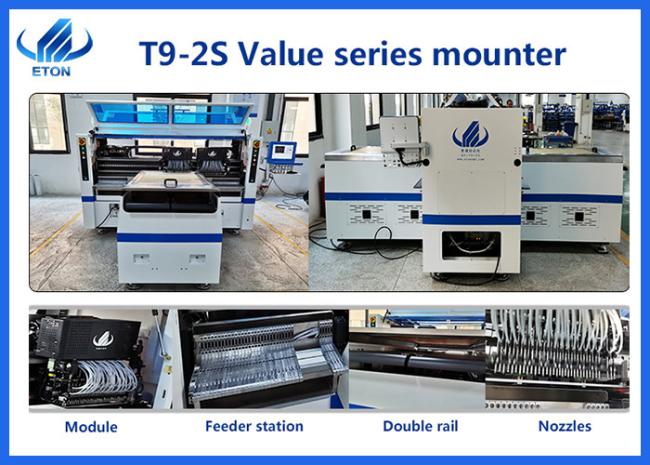

T9-2S details
| Dimension | 3454*3035*1777mm |
| PCB size | 250(±10)mm* any length |
| PCB thickness | 0.1-0.5mm |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail+four groups of placement heads |
| Mounting height | Less or equal 5mm |
| No. Of head | 136pcs |
| No. Of feeder station | 136pcs |
| Optimal speed | 500000cph |
| Power consumption | 9.6kw |
Why choose ETON pick and place machine?
1.Your inquiry about our products and price will be replied within 24 hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3.Whole SMT line solutions provide.
4.Best products and price to offer;
5.Shortest time to delivery the products ;
6.Strict QC before shipping the products;
7.OEM & ODM services offered;
8.With 1 year warranty !
9.Good packing!
Rope strip light procesee
FAQ
1.Are you a trade company or a manufacture?
A: We are a manufacturer,OEM & ODM service are available.
2.What is your delivery date?
A: The delivery date is about 15-30 days after receipt of payment.
3.What is your payment terms?
A: Accept payment by T/T,Alibaba.
4.Can you provide a whole line solution?
A: Yes, we can.We can supply SMT line and LED production line.
5. Does your machines have quality certificates?
A: We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 10 years) in LED light production line program.
