250000 CPH SMT Mounter Machine 68 Pcs Feeders Dual Arm Magnetic Linear High Speed
250000 CPH Dual arm magnetic linear high-speed mounter
HT-T9 is the professional high-speed mounter in our company.
Capacity reach 250000 CPH,
Realize Efficient production
THREE HIGH:
- High-Productivity :
Producing with Producing 4 types materials at the same time with high capacity.Capacity reach 250000CPH
- High-Precision :
It’s repeat precision is ±0.02mm(Repeat precision).
- High-intelligence:
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Application
0.5M ,1M,5M,10M,50M,100M,500M strip light
The details
About our machine outline dimension
| length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |
Our machine of HT-T9 is Double arm
| PCB Size | 250* any length |
| PCB Thickness | 0.1--0.5mm |
| Mounting Clamping |
Vacuum adsorption,cylinder clamping, track width adjustable |
| Mounting height | ≤5mm |
About the System
| O.S. | |
| System | Windows 7 |
| Display | Touch screen monitor |
| Feeding system | |
| No. Of feeders station | 68 PCS |
| No. of head | 68 PCS |
About Transmission
| Conveyor transmission | Max length:1000mm |
| Transmission speed | >500 mm/sec |
| Transmission direction |
Single (left→right/right→left) |
| Transmission mode | Online drive |
| Position way | Optical |
Other
| Operating environment | 23℃±3℃ |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²)150N/min |
- Machine highlights:
- Available for 5M, 50M or any length of Flexible strip and Roll to roll.
- Calibration automatically, available for RGB
- Adopt High-end magnetic linear motor and servo system
Exclusive patented technology:
- R&D Independently Electronic control
- R&D Independently software
- R&D Independently Motion control card module 1 set
- Exclusive patent technology: Group to pick and group to mount.
AFTER SALES SERVICE
Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan
- Professional solutions :
Provide professional SMT Full line solutions.
- Free Warranty:
One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.
- Free installation-On-site free installation to ensure smooth production.
- Free Technical Training: Professional training of operating and maintenance.
- Free Technical Support: 7 *24 technical online support.
- Free Software Upgrade: Offer free software upgrade whole lifetime
OUR COMPANY
We have a history for more than ten years
ETON is a manufacturing and process solution provider focusing on R&D,production,sales and service of SMT high-speed pick and place machine.ETON specializing in this industry for 12 years.

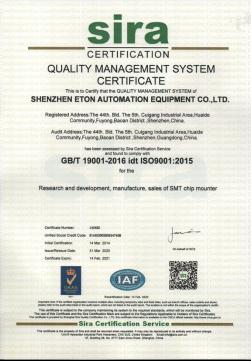

We enjoy many honors
ETON is the leading manufacturer of global optoelectronic high speed pick and place machine , the products are exported to more than 20 countries and regions , including South Korea , India , Vietnam , Tunisia , Egypt , Turkey , Russia , Brazil etc . ETON obtains a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights . ETON is rated as " Shenzhen high - tech enterprise "" Guangdong high - tech enterprise "" China high - tech enterprise "" Shenzhen TOP Brand ""2015 LED Technology Innovation Award " “The 4th China LED First Innovation Award" “Industry Special Contribution Award "etc .
