500000CPH 136 Feeders SMT Placement Machine For LED Flexible Strip Light
SMT placement machine for LED flexible strip light
T9-2S is the professional high-speed mounter
T9-2S can mount any length strip light with double arm
Application
0.5M ,1M,5M,10M,50M,100M,500M Strip light
Main process flow of SMT
What are the elements of the SMT placement machine placing process?

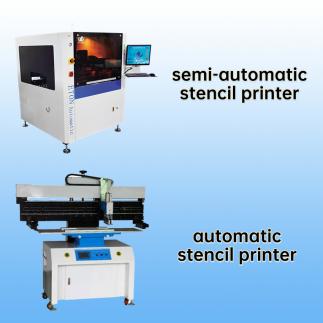

- Printing solder paste: Use wire mesh to leak solder paste onto PCB pads in preparation for component welding. The equipment required for this process is a solder paste printing machine, which is divided into fully automatic and semi-automatic.
- Mounting: The equipment required for accurately installing surface mounted components to their corresponding fixed positions on the PCB is a placement machine.
- Furnace welding:The purpose is to melt the solder paste so that the components on its surface can be combined with the PCB board. The required equipment is a reflow oven.
The details
We can customize the production management MES system including your requirements.
About our machine outline dimension
| length | 3454mm |
| Width | 3035mm |
| Height | 1777mm |
| Total weight | 3100kg |
Our machine of T9-2S is
group picking and group placing
| Size | 250(±10)mm * any length |
| Thickness | 0.1--0.5mm |
| Mounting Clamping |
Vacuum adsorption,cylinder clamping, track width adjustable |
| Mounting mode | Double rail+Four groups of placement heads |
| Mounting height | ≤5mm |
About the System
| O.S. | |
| System | Windows 7 |
| Display | LED display |
| Feeding system | |
| No. Of feeders station |
Double side:136 PCS Single side:68 PCS |
| No. of head |
Double side:136 PCS Single side:68 PCS |
| Feed way | Intelligent electric feeder with double motor |
About Transmission
| Conveyor transmission | Max length:1000mm |
| Transmission speed | >500 mm/sec |
| Transmission direction |
Single (left→right/right→left) |
| Transmission mode | Online drive |
| Position way | Optical |
Other
| Operating environment | 23℃±3℃ |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²)150N/min |
FAQ
- 1. Does the price include the feeders or nozzles?
- No, the price only includes the SMT machine. Feeders and nozzles need to be purchased according to customer demand.
- 2. Do you only provide SMT machine?
- We not only provide SMT pick and place machine, but also provide SMT peripheral equipment, including stencil printer, conveyor, reflow oven, loader & unload, stocking conveyor, SPI, AOI etc.
- 3. What the products does the machine produce?
- SMT machine is apply to all kinds of products, such as DOB, led bulbs, Led tube, strip lights, panel light, spot light, down lights, lens, electric
