Professional SMT Mounter Machine 180000CPH High Speed 34 Heads Dual Arm
180000CPH Dual-arm professional high-speed mounter
HT-F7S is the professional high-speed mounter in our company.
HT-F7S has Dual arm magnetic linear LED high speed pick and place machine,
Capacity reach 180000 CPH,
Realize Efficient production
THREE HIGH:
- High-intelligence:Two mounting modules, 17 nozzles for each mounting part, part A and part B can be mounted separately or synchronously
- High-precision : Repeat Mounting precision :±0.02 mm (Repeat precision
- High-Productivity:Capacity reach 180000 CPH
Application

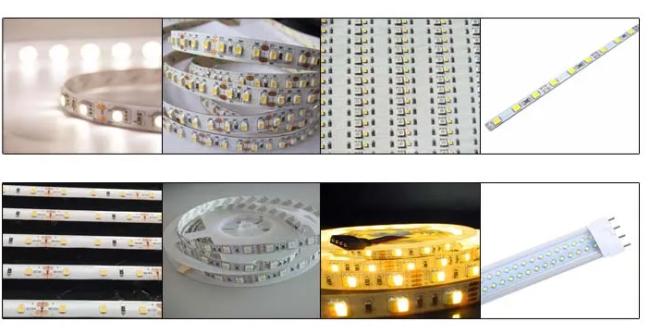

0.6 m, 0.9 m, 1.2 m rigid PCB and
0.5 M, 1 M LED flexible strip.
Machine highlights:
- Calibration automatically,high precision,available for RGB
- Digital Camera 5 sets :Vision alignment , MARK correction
- Adopt High-end magnetic linear motor,servo motor
Exclusive patented technology:
- R&D Independently Electronic control
- R&D Independently software
- R&D Independently Motion control card module 1 set
- R&D Independently Group to take and group to mount
The details
About our machine outline dimension
| length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |
Our machine of HT-F7S is
group picking and group placing
| Size |
Max size: 1200mm*330mm Min size: 100*100mmh |
| Thickness | 0.5--5mm |
| Mounting Clamping | Adjustable pressure pneumatic |
| Mounting height | ≤5mm |
About the System
| O.S. | |
| System | Windows 7 |
| Display | Touch screen monitor |
| Feeding system | |
| No. Of feeders station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
About Transmission
| Conveyor transmission | Max length:1200mm |
| Transmission speed | >500 mm/sec |
| Transmission direction |
Single (left→right/right→left) |
| Transmission mode | Online drive |
| Position way | Optical |
Other
| Operating environment | 23℃±3℃ |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²)150N/min |
