136 Heads LED Pick And Place Machine 500000CPH High Speed For Strip
Product Description

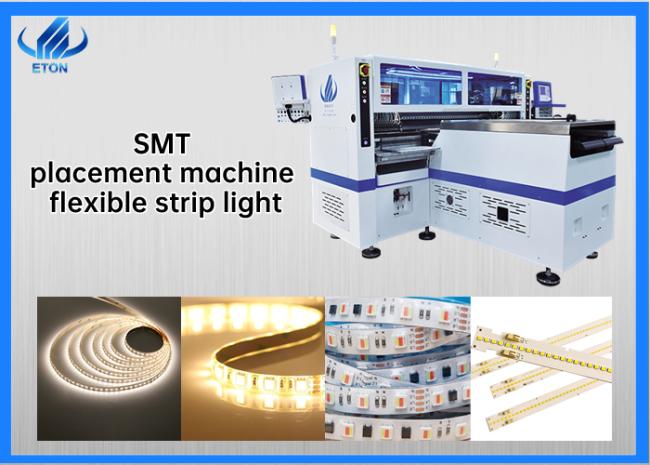

The T9-2S is ETON latest dual track, dual system, ultra high-speed mounting machine for producing LED lead-free soft lamps. It is equipped with a high-speed integrated adjustable mounting head independently developed by ETON, and supports belt mounted LED, 3014, 3020, 2835, 5050, or resistors, capacitors, bridges, etc. Under optimal conditions, the production capacity can reach 500000 CPH.
Feature
- ETON tech adjustable mounting machine placement head:Component picking position can be adjusted according to PCB pad pitch,min 6.5mm. Apply to LED,3014,3020,2835,5050,resistor,capacitor,bridge rectifiers etc. Wide component range.
- Ultra high speed capacity:The mounting machine placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way,excellent optimum capacity reach 5000000 CPH.
- Unique design components leaking detection and individual component refill function:recognition camera record the components leaking position of PCB,and fill the missing component accordingly,realize industry 4.0 unmanned workshop.
Main parameter
| Product name | Mounting machine |
| Model | T9-2S |
| PCB size(mm) | Max:250(±10)*any length |
| PCB thickness | 0.5-1.5mm |
| Mounting component height | ＜＝ 5 mm |
| Mounting precision | ± 0.05 mm |
| No.of camera | 10PCS |
| No.of nozzles | 136 PCS |
| No.of feeders station | 136 PCS |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way | Intelligent electric feeder with double motor |
| X,Y,Z Axis drive way | High-end magnetic linear motor ＋ servo motor |
Application
Mounting machine T9-2S is mainly used for the production of soft light strips, and for the production of soft light strips of any length at ultra high speed, such as 0.5 meters, 1 meter, 5 meters, 10 meters, 50 meters, 100 meters, and 500 meters.
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
1. If there is a problem with the machine,can it be repaired?
A: Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
2. Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
3. Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
