High-Precision SMT Mounting Machine: 1200*500mm PCB Assembly 45000CPH
45000CPH SMD Mounting Machine 1200*500mm PCB Assembly pick and place machine

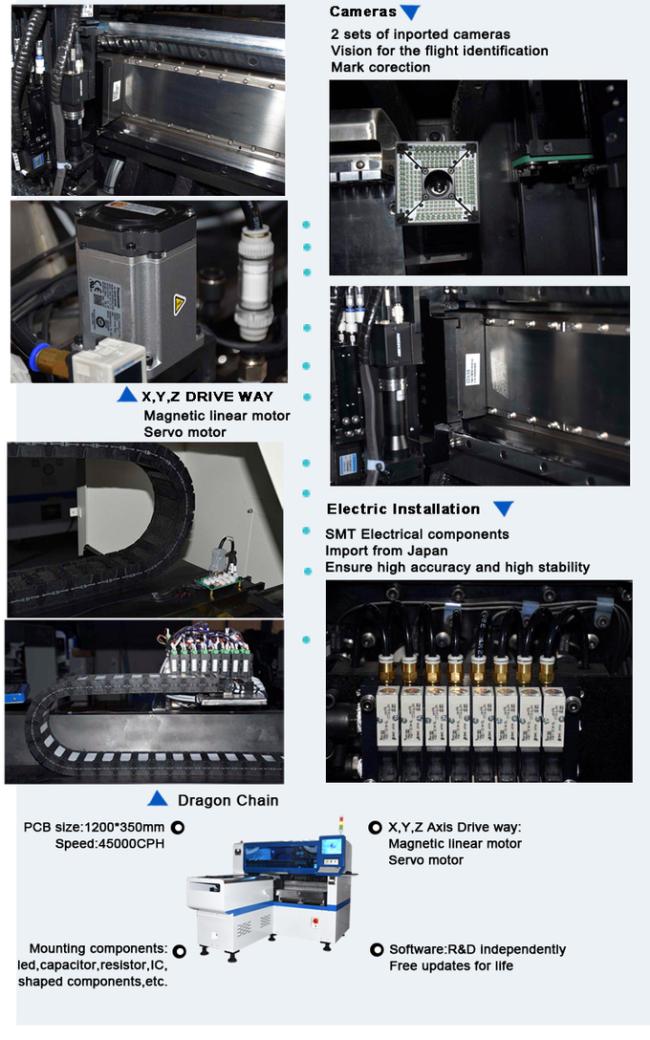

The Features
- The machine is easy to operate and generally only takes five days. We will provide free online or offline
teaching.
- The beam adopts linear guide and grating ruler. Make the head do high-precision reciprocating motion,
with high detection accuracy and fast response speed.
- 28 feeders can be placed, which can greatly satisfy the number of components placed by customers.Conducion
tofaster product output, better and more convenient.
Technical Parameters
| Parameter | Specification |
|---|---|
| Machine Dimension | 1600*2100*1400mm |
| Components Range | 0402, Led Chips, Resistors, Capacitors, Etc. |
| PCB Thickness | 0.5-5mm |
| Weight | 1800KG |
| Power Supply | 380V/50Hz |
| Mounting Speed | 45000CPH |
| Mounting Height | 15mm |
| PCB Size | 100*100mm-1200*500mm |
| Voltage | 220V |
| Mounting Accuracy | ±0.02mm |

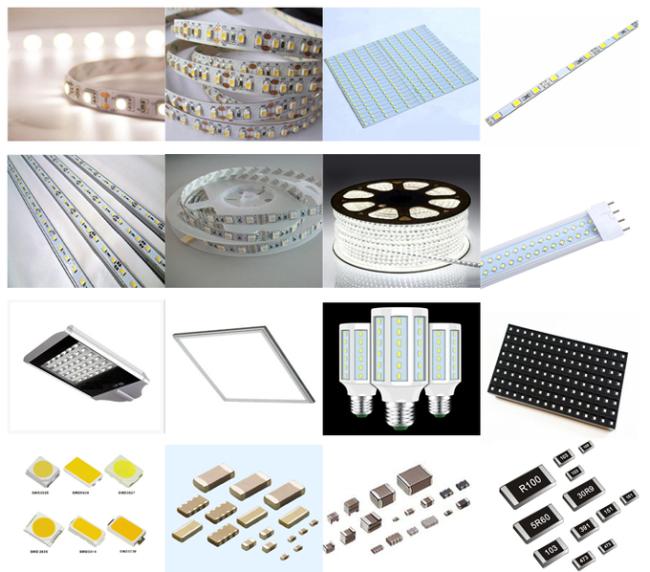

Applications
The ETON HT-E8S-1200 Automatic SMD Mounting Machine is a high-end, reliable, and efficient SMD placement machine that is certified by CE, CCC, and SIRE.It comes in a WOODEN CASE and can be delivered within 30 DAYS with payment methods of T/T or LC. It has a maximum supply capability of 50/PER MOUNTH. This machine runs on 220V and can achieve a mounting speed of 45000CPH, with a power supply of 380V/50Hz. It has a dimension of 1600*2100*1400mm and a mounting accuracy of ±0.02mm.
Client Country
Our products not only sell well in China, but also exported to more than 20 overseas countries, such as
South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.Some listed companies
including Changfang, Wanrun Technology, Mulinsen, Linghang, Century Classic, Zhuhai Taobo, Huizhou
Guozhan Electronics, etc.
Service
We are committed to providing our customers with the highest quality technical support and service. Our experienced technicians are on hand to provide assistance with any technical issues you may have with your SMD Mounting Machine. We understand that our customers rely on our machines for their production, so our team is dedicated to providing a prompt, knowledgeable response to any inquiries.
Our technical support and service includes:
Troubleshooting and diagnostics for any technical issues
Software updates and upgrades
Hardware repairs and maintenance
Training and education on the use and operation of the machine
Access to our online customer support portal
If you have any questions or concerns about your SMD Mounting Machine, please do not hesitate to contact our team. We are here to help!
FAQ
Q: What is your actual speed of your products?
A: For the actual speed of the machine which is constrained by many factors,that relatedto the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q: Can I go and see if you have sold the equipment to India?
A: Yes, we have sold our machine in India, but for the fact we can't decide it for our customer, but I will try to contact our customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate
