High Speed 68 Heads SMT Pick And Place Machine For Roll To Roll Flexible Strip

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 30 working days

Brand: ETON

Product Description

Roll to roll flexible strip High speed 68 heads SMT pick and place machine

Features

Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.

IPC9850 Capacity: 200000~250000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Model	HT-T9
Dimension
Length	3100mm
Width	2300mm
Height	1550mm
Total Weight	1700kg
PCB
PCB Length Width	250mm*any length
PCB Thickness	0.5-1.5mm
PCB Clamping	Adjustable pressure pneumatic
Mounting Mode	Group to take and group to mount
O.S.
System	Windows7
Software	R&D independently
Display	Touch screen monitor
Input Device	Keyboard, Mouse
Vision System
No. of Camera	5 PCS ( Digital camera)
No. of Camera	Vision alignment, MARK correction
Mounting Precision	±0.02mm
Mounting Height	≦5mm
Mounting Speed	200000~250000 CPH
Components	LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed	0.5mm
No. of Feeders Station	68 PCS
No. of nozzles	68 PCS
Power	380AC 50 HZ
Power Consumption	6kw
Operating Environment	23℃±3℃
Conveyor transmission	Max Length :1000 mm
Transmission speed	>500mm/sec

Packages

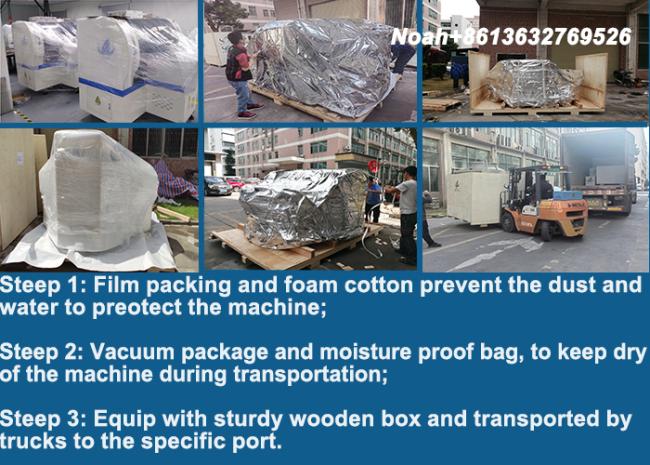

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port

Related machine

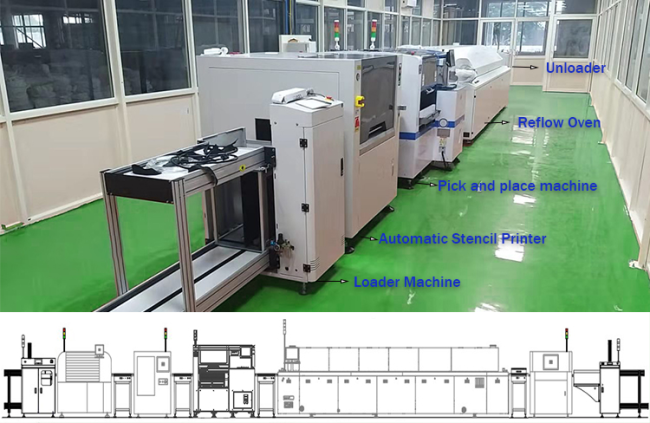

We can provide a whole SMT production line,led light production line:

1.Pick and place machine

2. Loader machine

3. Conveyor machine

4. Stencil printer machine

5. Reflow oven machine

6. Unloader machine

7. Solder paste mixer

8. Roll to roll led strip light assembly machine

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.
