Dual Arm SMT Pick And Place Machine Max PCB 1200*300MM for Panel Light
Panel light Max PCB 1200*300MM dual arm SMT pick and place machine
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 200 practical patents, 49 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Features
- Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials at the same time with high capacity. available for board with any proportion of LED chip and resistor.
- Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group to take and group to mount.
| Model | HT-F9 |
| Dimension | |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group to take and group to mount |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 5 PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat Mounting Precision | ±0.02mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Optimal Mounting Speed | 200000~250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of head | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor Transmission | Max Length :1200 mm |
| Transmission Speed | >500 mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Positioning way | Optical |
| Air Supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
Our Exhibitions

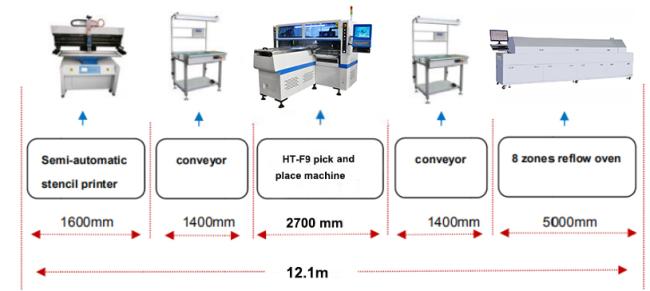

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
The equipment required for the semi-automatic production line includes:
- Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
- Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
- Reflow oven: melting the solder paste to make it adhere to the mounting components;
- Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
