Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 30 working days

Brand: ETON

Product Description

Max 500*470MM PCB for household appliance SMT pick and place machine

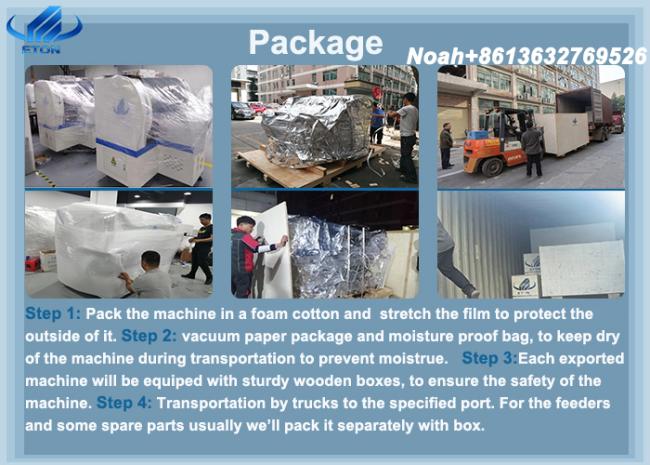

Packages

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port

Machine main features

Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
Y axis double drive gantry, higher speed more stability
The placement head adopt independent vacuum detection, improve the placement performance
Off-line programming, save time of changeover cycle
Equipped coordinate import function, more intelligent

Machine main parameter

Model	KT10S
Dimension	146020151654mm
Total weight	2080kg
PCB size	Max:500470mm(Length can be customized) Min:5050mm
PCB thickness	0.5-5mm
Mounting precision	CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed	48000 CPH(Optimal speed)
Components	LED, capacitor, resistors, shaped components,etc
Power consumption	220AC 50HZ 1.5KW
Feeder station	52 PCS(option 104 PCS), IC tray option
No. of head	10 PCS

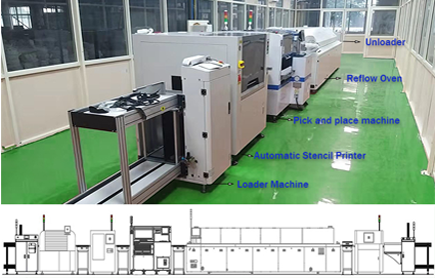

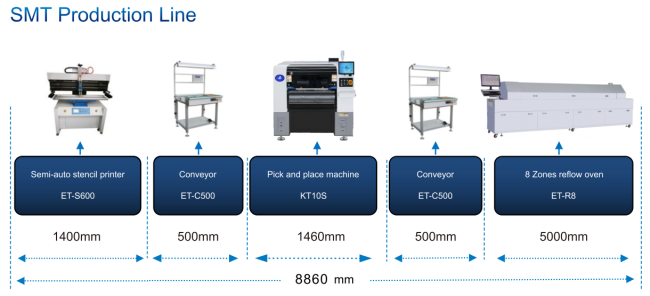

SMT Line solution

A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.

Our advantage

Focusing on SMT high speed pick and place machine more than 20 years
The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
