High Speed Pick And Place Machine 80000CPH PCB Mounting Machine
Flight Identification Visual Alignment System Pick and Place Machine with High Stability and Precision
Product Feartures of SMT machine
Double module magnetic linear motor+servo motor
Electric Feeder feeding System
Non stop material re-loading function
Auto-optimization after coordinates generated
Conponent:0402,LED chip,capacitor,resistor,lens,IC ,shape compoents,etc

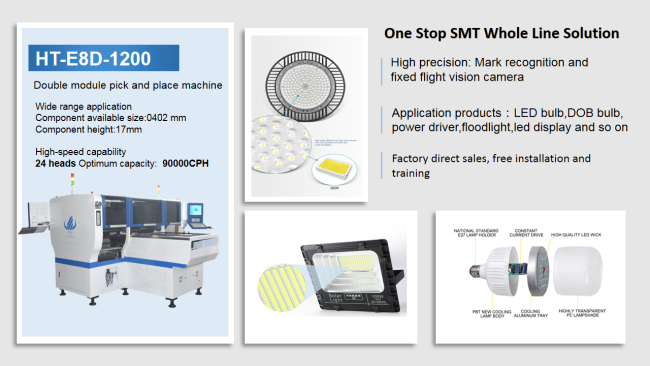

HT-E8D-1200 PICK AND PLACE MACHINE
Thechnical Parameter
| Model | HT-E8D-1200 | HT-E8D-600 |
| PCB size | Max:1200*300mm min:100*100mm | Max:600*300mm min:100*100mm |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting speed | Optimal speed 90000CPH | |
| Power & power consumption | 380V AC 50HZ 8KW | |
| Feeder station | 48PCS | |
| Head | 24PCS | |
| GAS consumption | 0.4~0.6mpa | |
| Transmission direction | Both direction(Option) | |
| X,Y,Z axis drive way | High end magnetic linear motor +servo motor | |
Machine Features
Vision System
4 sets of digital Camera,Vision for the flight identification,Mark Correction
Electric Feeder feeding System
Feeding way:Electric feeder with Double motor
Feeder station:48 PCS
Feeding Type:electric feeder；IC tray;Vibration Feeder
Dual module System
To produce two different products at the same time
Double mounting module
Save time and places

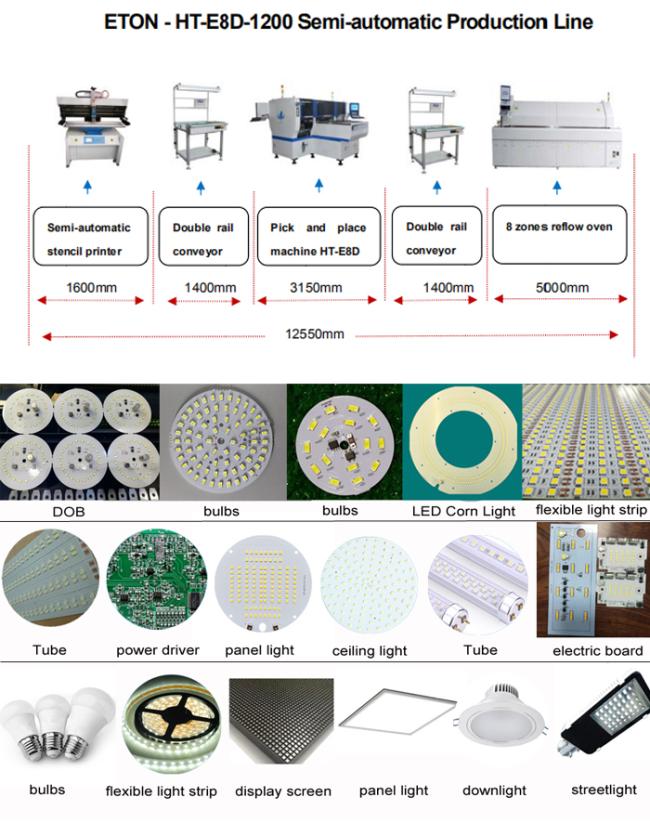

Application
