Double Arm SMT Pick And Place Machine For Tube Panel RGB Light
Tube panel RGB light double arm SMT pick and place machine
Production description
Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.
Features
- Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
- Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group picking and group mount placing.
- IPC9850 capacity: 150000-180000 CPH
Machine parameter
| Model | HT-F7S |
| Dimension | 2700*2300*1550mm |
| Total weight | 1700kg |
| PCB length width |
Max: 1200*330mm Min: 100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and group placing |
| Mounting precision | ±0.02mm |
| Mounting speed | 150000-180000 CPH |
| No. of feeders station | 68 PCS |
| No. of head | 34PCS |
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

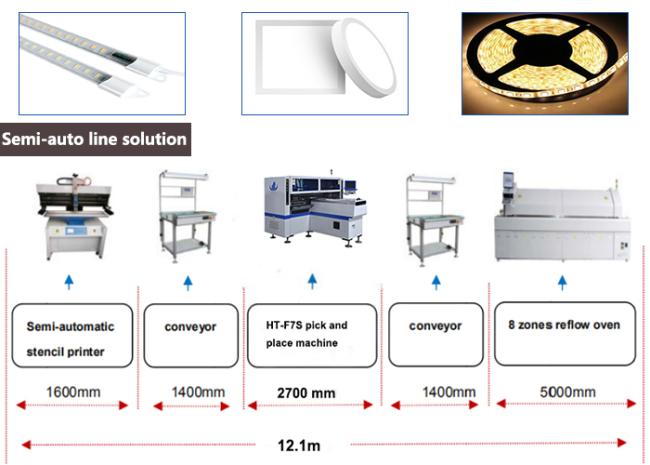

SMT Line solution
The blowing is the function of each machine:
- Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
- Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
- Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
- Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,etc.
