ETON Fastest SMT Pick And Place Equipment In LED Light Production Line
smt pick and place equipment led lights assembly machine led tube light making machine
● Dual gantry, 20 splines.
● Maximum PCB board: 500*300mm, minimum 50*50mm.
● Optional IC tray, ANC, flexible production
● Flexible wiring is achievable through modular placement
Heads and various production modes.
1.X,Y,and Z axis all adopt self-developed high-end magnetic linear motor
2.Flexible PCB handling capabilities, multi-station,multi-material mounting
3.Y axis adopts double drive gantry structure
4.Support automatic replacement nozzle function(option)
5.Apply to 0201~35*35mm tape reel package and IC tray feeder
Technical Paremeter
| Model | YT20S |
| Dimension | |
| Length | 1480mm |
| Width | 2680mm |
| Height | 1650mm |
| Total Weight | 2380kg |
| PCB | |
| PCB Length Width | Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 1 PCS (Head flight vision camera) |
| 2 PCS Mark camera | |
| Mounting Precision | CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height | ≦16mm (Other height can be customized) |
| Mounting Speed | 98000 CPH(Under best condition) |
| Components | 0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Speed | 0.2mm |
| No. of Feeders Station | 104 PCS |
| No. of nozzles | 20 PCS |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±3℃ |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Intelligent feeder with double motor |
| Production management MES system interface | Customized |

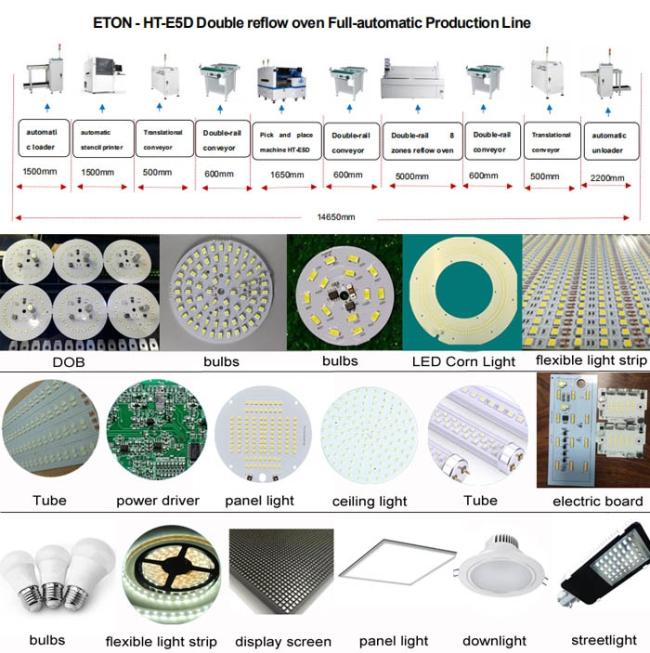

Application
Our Services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
