10 Heads Pick And Place Machine High Speed For Outdoor Light/indoor Light

Price Negotiable

Price: FOB USD 33000~43000/sets

MOQ: 1

Delivery Time: 30 days after deposit

Brand: ETON

Product Description

High-Performance SMT Mounting Machine for LED Display Making SMT Production Line

Features of pick and place machine

YT10S is a multi-function pick and place machine,Apply the PCB size :Max: 500*450 mm
Application products
Battery board, car power supply,high by light,USB, 3C products, power driver, street light, down light, spot light,floodlight,ceiling light, panel light, led display, household appliance and so on.

PCB Size	500*450mm
heads	10PCS
Feeder station	52PCS
Components	0201~15MM packaging material and IC material(Optional fixed camera for 0201~35*35MM), Other component size can be customized
X,Y,Z Axis Drive way	High-end magnetic linear motor
Mounting Speed	48000 CPH(Under best condition)

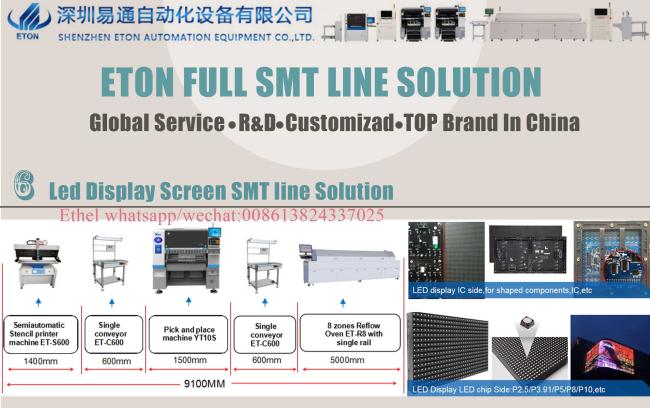

SMT line:

Semi-automatic Stencil Printer ET-S600

Model	ET-S600
Dimensions	14008001680mm
Platform size	650×370mm
PCB size	600×350mm
Template size	550×830mm
Printing speed	0-8000mm/min
PCB thickness	0-50mm
PCB fine tuning range	Front/side±10mm
Power supply	1PAC 220V 50/60HZ
Platform height	850±20mm
Repeatability precision	±0.01mm
Positioning mode	Outside/Reference hole
Weight	Approx.280Kg

Single rail conveyor ET-C600

Model	ET-C600
Steel frame structure, rail length	L=600 mm
Width adjustment range	50～350 mm
PCB size	500*350 mm
Transmission height	920±20
Transmission	5MM flat belt conveyor
Speed	Adjustable from 0.5 to 9 m/min
Motor	One set of 25 W stepper motor
Control	Industrial control panel
Transmission Direction	Single (left → right )
One section of control, two Sensors

Reflow Oven ET-R8

ET-R8
NO. of heating zone	Upper 8 hot air heating, lower 8 hot air heating
Length of heating zone	3000mm
heating method	Full hot air
PCB maximum width	450mm mesh belt, Single lead rail
Transport direction	left-right,right to left(option)
Conveyor belt height	Mesh belt 880±20mm
Delivery method	Mesh belt drive + rail (optional)
Conveyor speed	0-2000mm/min
power	380V 50/60Hz Three-phase five-wire AC:380V 50Hz
Starting power	28KW
Working power	7KW
Heating time	Around 15 mins
Temperature control range	Room temperature～350℃
Temperature control method	PID control + SSR drive
Temperature control accuracy	±1℃
Abnormal alarm	Abnormal temperature alarm
Machine dimensions(LWH)	5000mm1000mm1500mm
Machine weight	1200kg

Service ETON

ETON is the leading SMT MACHINE manufacturer in China.
R&D team and mature technology,Independent manufacturing park about 52000 square meters
Big market shares in India,Turkey,South Africa, Pakistan, Egypt.Poland etc.
Free installation and training, About 10 overseas engineers.
