45000CPH SMD Production Line SMT 28 Feeder Led Chip Mounter Pick And Place Machine
Product details
Features
With the rapid development of the LED industry, the quality requirements for automation equipment products are getting higher and higher. The ETON placement machine is equipped with MARK point positioning vision + equipment recognition functions. Pursuing high speed and high stability, this is an economical and practical LED multi-function placement machine.
Exclusive patented technology
①. Electronic feeder feeding system
②. Non-stop material re-loading function
③. Auto-optimization after coordinates generated, etc
Technical parameter
| HT-E8S-1200 | |
| L*W*H | 2550*1650*1550mm |
| Total weight | 1700kg |
| PCB thickness | 0.5~5mm |
| PCB length width | Max:1200*500mm Min: 100*100mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing, separate picking and separate placing |
| Mounting height | <18mm |
| No. of camera | 2 sets of imported camera |
| Mounting precision | ±0.04mm |
| Mounting speed | 45000CPH |
| Components Space | 0.2mm |
| Feeders station | 28PCS single module |
| No. of nozzles | 12PCS single module |
| Power | 380AC |
| Power comsumption | 4KW |
| X,Y,Z,Axis drive way | High-end magnetic linear motor+servo motor |
Machine Parts

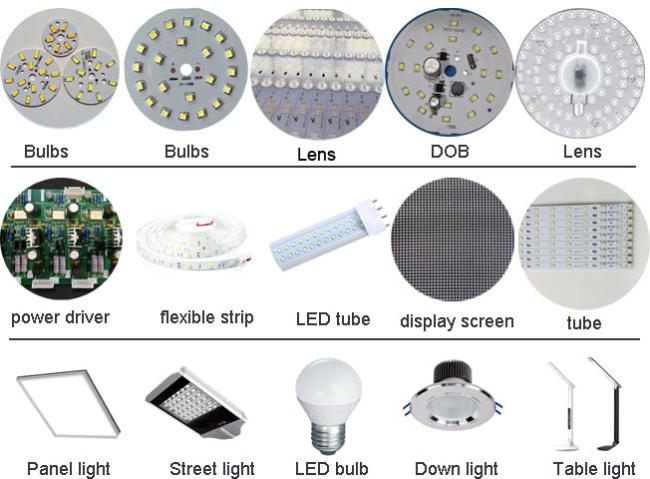

Application
Multi-functional machine can mount many kinds of products, such as DOB, bulb, lens, linear bulbs, Led corn light, flexible light
strip, power driver, panel light, ceiling light,electric board, display screen, down-light,streetlight, etc.
About our company
1.Our company has more than 15 years development history.
2.Independent R&D Exclusive Patented technology.
3.85% large and listed LED factory in China are our client.
4.Top 1 in highspeed pick and place machine in China.
5.Overseas engineers and office in India, Egypt, Turkey
6. Door to door machine installation and training for free
Exhibition show
Our company has many exhibition, domestic and foreign. For example: India, Istanbul, Turkey, Guangzhou Guanya, Chongqin LED lighting, etc.
Related machine
Such as: pick and place machine, reflow oven, loader, conveyor, etc.
| Q: Can we customize the machine? |
| A: Sure, all of our machine can be customized. |
| Q: Is it easy to operate ? |
| A: Yes, the soft language is English or Chinese. And we can provide free install and training. If there is any doubt in the process of operating the machine, please feel free contact us. In addition, we have local engineer in Turkey, India, Egypt . |
| Q:How about the warranty |
| A: We support 1 year warranty from delivery and lifetime maintenance service. Provide one to one after-sale service. |
| Q: Do you have the product in stock? |
| A: Sometimes we have some in stock for ship, but we need do machine test before shipping. Usually, the delivery date is about 20 days upon the full payment. |
