About T9

The speed is 250000CPH. Is it amazing? I believe that most of our customers are interested in why this machine can reach so high speed.You know it called mounting module. HT-T9 also has two modules, but one module has 2 mounting parts and each mounting parts has 17 heads. Totally 68 mounting heads. That make HT-T9 can pick two times components and place two times components than HT-F7S. This is the main reason why HT-T9 can reach 250000CPH and speed higher so much than HT-F7S.

So why we said HT-T9 is the most popular model. Cause it is specialized model for the most popular LED products roll to roll strip. No matter 5M strip, 25M strip, 50M strip or even 100M strip light,any length you want, you can produced by HT-T9.HT-T9 is a really very fantastic model

Someone maybe wonder if the machine is difficult to operate? Don't worry about this, this is the operate computer, it is touch screen monitor, very easy to control.we have professional college can teach you how to master it. In particular, it is EVOC brand, the Chinese top one!

Parameter

Dimension:3100*2300*1550mm

Total Weight:1700 kg

PCB Length Width:250*any length

PCB Thickness:0.5-1.5mm

PCB Clamping:Vacuum adsorption, cylinder splint, adjustable track width

Mounting Mode:Group picking and separately placing

Mounting speed: 200000~250000 CPH

Repeat mounting Precision:±0.02mm (Repeat precision)

Mounting Height:≦5mm

Components:LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.

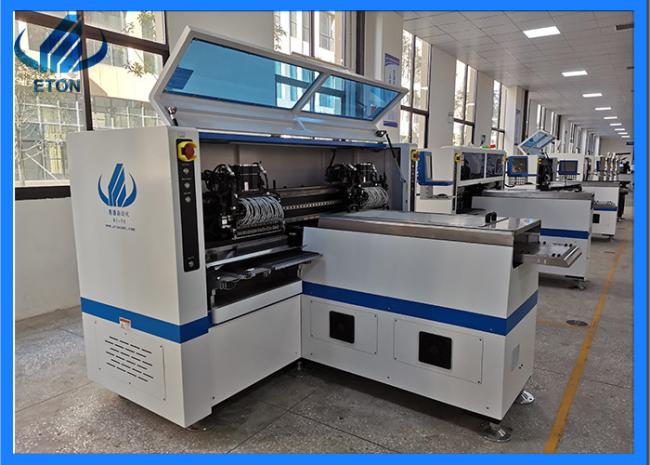

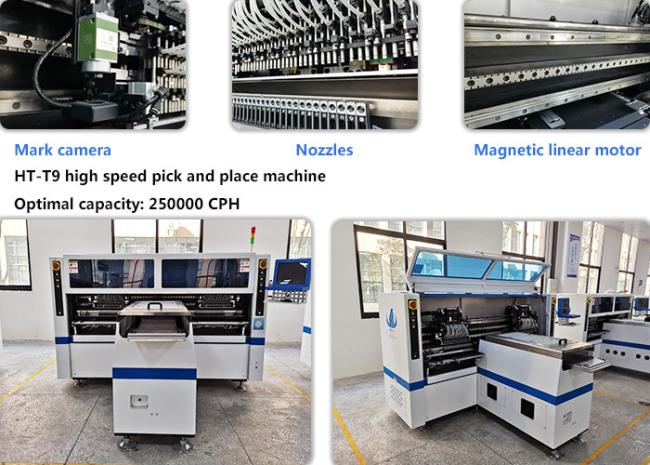

Real shot image

Appliction

Exhibition

Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

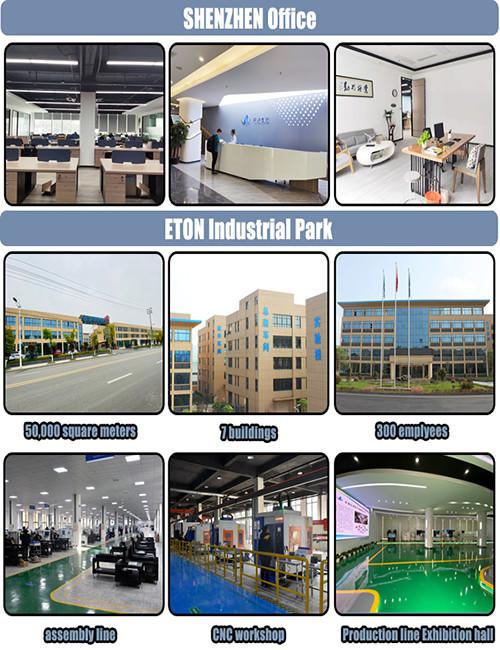

Company

Certifications

Since the establishment, ETON focus on technology reach and development, obtains a number of intellectual property technologies,including 9 invention patents, 112 practical patents, 12 software copyrights.
ETON is rated as “Shenzhen High-tech enterprise” ”Guangdong high-tech enterprise” “China high-tech enterprise” “2015 LEDTechnology Innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” etc.
