100% Original Led Bulb Assembly Line Machine Smt Chip Shooter 1 Year Warranty
Double module magnetic linear motor multifunctional pick and place machine HT-E5D
Application:
Advantages:
1. Used in any product, cost-effective.
2. All components can be placement.
3. Produced in China; it with of high quality; fast placement; 16 nozzles and electric feeders.
4. Professional after-sales service team provides overseas service.
chips,resistor,capacitor,IC,shaped components etc.
Features:
1) Vision for the flight identification,servo driven.
2) Placement rates up to 80,000 CPH
3) Accurately place, manager, and track components with Smart Feeders
4) Accurately places a wide range of components including 0402, LED,0.2mm pitch QFP,SMT Connectors and many others
Exclusive patented technology:
1. Electronic feeder feeding system
2. Vision alignment flight identification,Mark correction
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated,etc
Technical parameter:
| Dimension | Length | 1650MM |
| Width | 2000MM | |
| Height | 1550MM | |
| Total Weight | 2800KG | |
PCB |
PCB Size | Max:500*300mm Min:100*100mm |
| PCB Thickness | 0.5-3mm | |
| PCB Clamping | Electric clamping + Adjustable pressure pneumatic | |
| Mounting Mode | group picking and separate placing,separate picking and separate placing. | |
| Vision System | No. of Camera |
4 set of imported camera |
| Vision for the Flight Identification,Mark correction. | ||
| Mounting Precision | ±0.02mm | |
| Mounting Height | <36MM | |
| Mounting Speed | 80000CPH | |
| Components:Max:36mm,Min:LED 0402 | LED,resistor,capacitors,shaped components,etc. | |
| Components Space | 0.2mm | |
| Feeding System | No. of Feeders | 60PCS |
| No. of Nozzles | Dual mode , totally 16 | |
| Feeder Style | Use Electric Feeders | |
| Non-stop refueling function | ||
| The automatic optimization function | ||
| X,Y ,Z Axis Driving | High-end magnetic linear motor + Servo Motor |
Company Introduction:
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic high-speed pick and place machine.In 2011,set up ShenZhen Eton Automation Equipment Co.,Ltd.In 2011,HT-12 series began selling.In 2011,HT-E3 was complete research and development (Eton 3 generation machine).
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies In 2018,HT-E8T/HT-E9T(ETON thee generation 5st multi-function machine ) HT-D12 ( Automatic glue dispenser machine ) was completed R&D and begin selling;

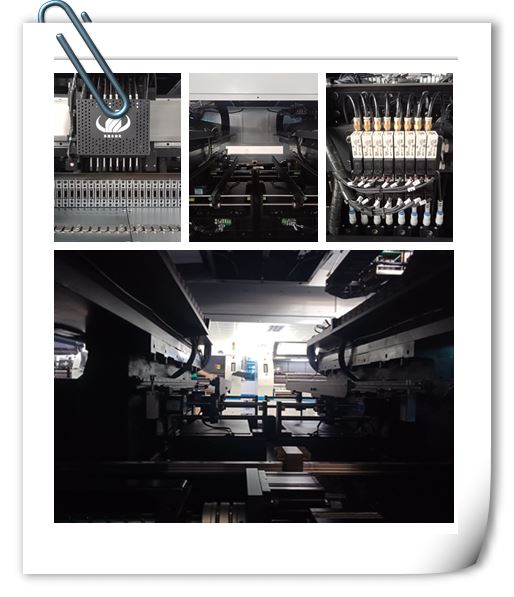

Detail:
Customers cooperating with us:
Successful Experien
※ Eton's customer in 25 countries around the world
※ Training more than 300 experts and technician for customers.
※ Became the most reliable Chinese partner for you.
Packing Method:
※ Vacuum wooden package
Shipping Way:
※ By air;
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ 15~30 Days
FQA:
1.Are you a trade company or a manufacturer?
=>We are a national high-tech enterprises research and development, production, sales and after-sales service as a whole
2.What is your delivery date?
=>The delivery date is about 15~30 days after receipt of payment.
3.What is your payment terms?
=>30% deposit in advance and 70% balance before shipment.
4.Who is your client?
=>We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
5. Why choose us?
=> Leading SMT Supplier in China; Professional after-sales service team.
