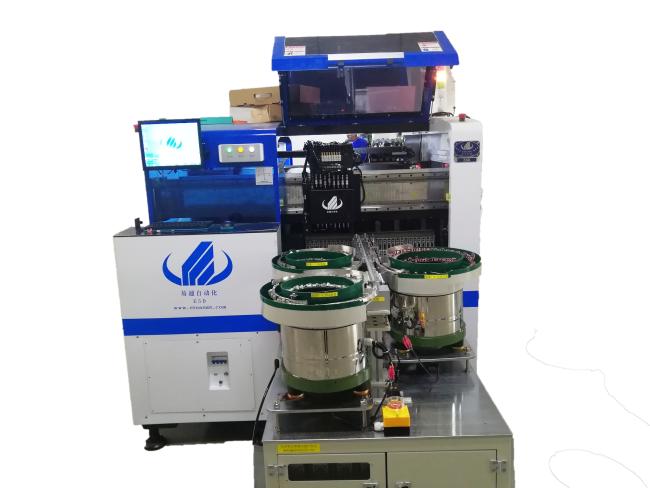

Double module magnetic linear motor multifunctional pick and place machine,totally 60 PCS feeders station and 16 heads, feeding way is electric feeder with double motor,It can meet the mounting of most components.
Easy maintenance: simple design and easy maintenance.Low cost of replacement parts, low maintenance cost.
| HT-E5D | ||
| PCB | PCB length width | Max:500*300mm min:100*100mm |
| PCB thickness | 0.5~3mm | |
| PCB clamping | Electric clamping + Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 80000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | Duel mode.totally 60 |
| No.of nozzles | Dual mode.totally 16 | |
| Feeding way | Electric feeder with double motor | |
exhibition
reference configuration
1. Control system: industrial computer + precision motion control card + touch screen monitor
2. Software system: Chinese and English operating system R&D independently by ETON.
3. Sport motor: panasonic original motor
4. Mounting nozzle: independently developed several types of nozzles.
5. Sliding device: precision screw rod and linear guide rail.
6. Visual device: MARK point recognition
7. Feeding way:Electric feeder with double motor
