F9 PCB Pick And Place Machine 200000 CPH One Year Warranty For Panel Light
F9 Pick and place machine for panel light with 200000 CPH
Basic process of surface mounting
The basic process of the placement process of the placement machine is divided into: solder paste printing, SMT placement (by hand and machine), intermediate inspection, reflow soldering, post-furnace inspection, performance test, aging test (some are not required), packaging.
SMT Line solution for LED Tube or Panel light

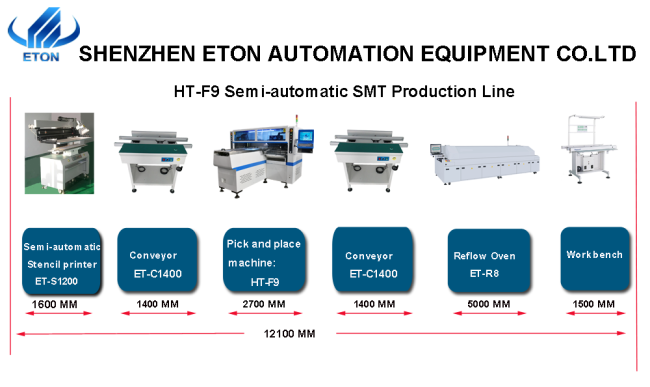

As the manufacturer of smt machines, ETON support whole smt machines for different led lighting and electrical board(Such as Bulb, DOB, LENS, Strip, Down-light, Display, Power driver,etc). There is the line of tube ,strip or panel light:
| Machine | Module | Function |
| Pick and place machine | HT-F9 | Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip |
| Semiautomatic Stencil printer | ET-S1200 | Print the solder paste on the corresponding PCB |
| Reflow oven | ET-R8 | Heating and welding the SMD electronic components to the PCB board |
| Conveyor | ET-C1400 | In the SMT line, it is for transmission and buffering PCB |
Parameter of HT-F9 pick and place machine
| HT-F9 Pick and place machine parameter | |
| Dimension(L*W*H) | 2700*2120*1550 mm |
| PCB Length Width | Max:1200*330 mm |
| Min:80*330 mm | |
| Mounting height | <13 mm |
| Mounting Speed | 200000 cph |
| Components | LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers |
| No.of nozzles | 68 pcs |
| No.of feeder station | 68 pcs |
| Sofware | R&D independently |
Parameter of ET-S1200 Stencil printer
| ET-S1200 Stencil Printer Parameter | |
| Printing area | 1200*250 mm |
| Plate Area | 1250*300 mm |
| Stencil Frame Size | 470*370~1300*550 mm(L*W) |
| Scraper Speed | 0-100 mm/sec |
Parameter of ET-C1400 conveyor
| ET-C1400 conveyor parameter | |
| Steel frame structure, rail length | L=1400 mm |
| Width adjustment range | 50~390 mm |
| Transmission Height | 900-940 mm |
| Transmission | 7mm flat belt conveyor |
| Speed | Adjustable from 0.5-9m/min |
| Motor | Set of stepper motor |
| Control | Industrial control panel |
Parameter of ET-R8 reflow oven
| ET-R8 Reflow oven parameter | |
| Number of heating zones | Up 8/Bottom 8 |
| Number of cooling zones | Up1/ Bottom 1 |
| Length of heating zones | 3000 mm |
| Components high | 50 mm |
| Temp. control method | PLC&PC |
| Warming time | About 20 mins |
| Dimension | 4600*1200*1490 mm |
ETON company
ETON set up in 2011, famous with high speed machine. In 2020, we reach the new high speed machine HT-F9. More faster. Besides, we also have other modules suitable for different products.
ETON services
We provide one year warranty, during warranty, any parts need to prepared and replaced will be free .
Also we will sent our engineer to your factory to install and training, it is freely.
We provide life time software upgrate.
