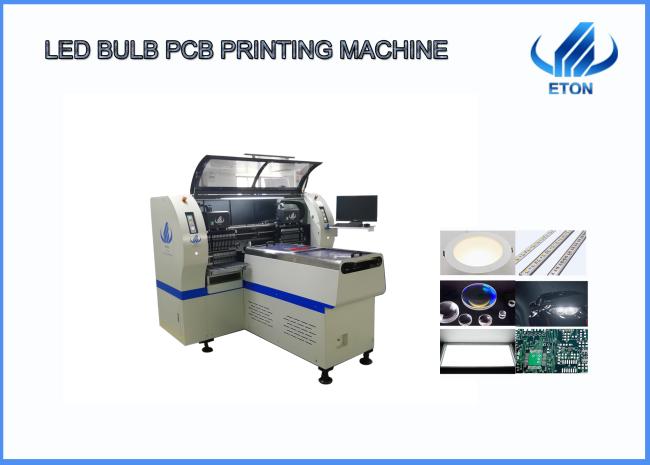

34 Heads Flexible Strip Led Chip Mounter 200000CPH
full automatic flexible strip light led chip mounter SMT placement machine
Details
| HT-X9 | ||
| PCB | PCB length width | Max:350*1200mm min100*100mm |
| PCB thickness | 0.5~5mm | |
| Mounting mode | Group to take and group to mount | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting speed | 200000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 34PCS | |
| No.of nozzles | 68PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 6KW | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor+linear magnetic motor | |
| Feeding way | Electric feeder with double motor | |
Our Services
1.Video technical support,24-hour online support
2.Visit customers regularly and gather information.
3.Goods tracking support
4.Free broken parts(Within 1 YEAR warranty )
5.Upgrade the software will be free
FAQ
Q:How is the training?
A:After you buy the machine, we will have an engineer to your factory for free installation and training
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 3~5 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes,In Both Chinese and English.
